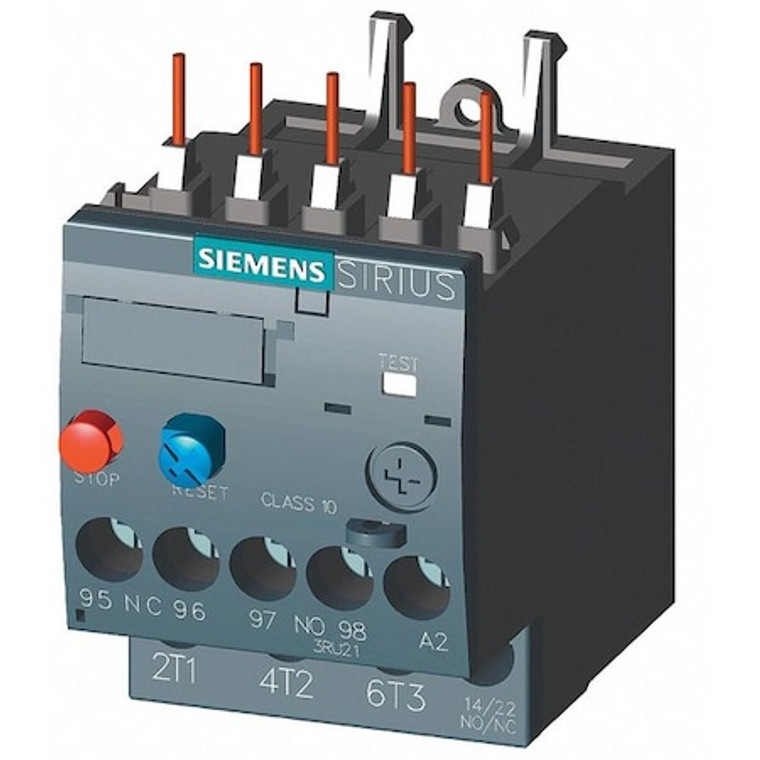

Overload Relay, 1.80 to 2.50A, 3P, Class 10 - 3RU21161CB0

Overload Relay, 1.80 to 2.50A, 3P, Class 10 - 3RU21161CB0

Siemens
SKU:
3RU21161CB0
|
UPC:
662643920192
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 2.5 A, Minimum Overload Relay Current Setting 1.8 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals 3, Reset Type Auto, Manual, Includes Thermal Units Yes, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S00, Relay Style IEC, Overload Protection Type Thermal
Additional Information
Country of Origin:
Germany
Item:
Overload Relay
Item - Relay:
IEC Style Overload Relay
Current Range:
1.80 to 2.50A
Use With - Contactors and Starters:
Mfr. Series 3RT201 Contactors
Overload Relay Current Range:
1.80 to 2.50A
NEMA Size:
Not Applicable
Width:
1.77";Trip Class - Overload=10"
Number of Poles:
3
Frame / Series / Class / Code:
S00
Height:
3.00";Sensing Method=Thermal"
Reset Type - Relay:
Auto, Manual
Depth:
2.75";Standards=REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation"
Separate Mounting:
Yes, Additional Items Needed
Overall Height - Relay:
3 in
For Use With:
3RT201 Contactors
Body Depth - Relay:
2.75 in
Body Width - Relay:
1.77 in
Trip Class:
10
Features:
Manual and Auto Reset
Body Height - Relay:
3 in
Mounting:
Contactor mounting
Starter Type:
IEC
Type:
thermal overload relay
Trip type:
CLASS 10
Size:
0.045 m / 0.076 m / 0.07 m
Environmental Conditions:
-55
Contact configuration:
1 / 0 / 1
Full Load Current Range:
2.5 A / 2.5 A
Insulation:
IP20
Contact Rating:
B600 / R300
Operating Temperature:
-40°C to 70°C
IP Rating:
IP20
Body Height:
4.64 in
Frame Size:
S00
Maximum Operating Temperature:
158 Degrees F
Auxiliary Contact Form:
1NO/1NC
Compatible with Series:
SIRIUS
Includes Thermal Units:
Yes
Minimum Operating Temperature:
-40 Degrees F
Includes Mounting Hardware:
Not Applicable
Terminal Connection Type:
Screw Terminals
Minimum Overload Relay Current Setting:
1.8 A
Maximum Voltage Rating:
690V AC
Relay Style:
IEC
Body Depth:
2.43 in
Phase:
Three
Overload Protection Type:
Thermal
Maximum Overload Relay Current Setting:
2.5 A
Mounting Style:
Direct To Contactor
Reset Type:
Auto, Manual
Body Width:
1.77 in
Overall Height:
4.64 in
Number of Required Thermals:
3
Package Quantity:
1
