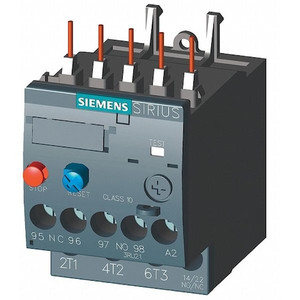

Overload Relay, 0.45 to 0.63A, 3P, Class 10 - 3RU21160GB0

Overload Relay, 0.45 to 0.63A, 3P, Class 10 - 3RU21160GB0

Siemens
SKU:
3RU21160GB0
|
UPC:
662643919899
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 0.63 A, Minimum Overload Relay Current Setting 0.45 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals 3, Reset Type Auto, Manual, Includes Thermal Units Yes, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S00, Relay Style IEC, Overload Protection Type Thermal
Additional Information
Country of Origin:
Germany
Item:
Overload Relay
Item - Relay:
IEC Style Overload Relay
Current Range:
0.45 to 0.63A
Use With - Contactors and Starters:
Mfr. Series 3RT201 Contactors
Overload Relay Current Range:
0.45 to 0.63A
NEMA Size:
Not Applicable
Trip Class - Overload:
10
Width:
1.77";Number of Poles=3"
Frame / Series / Class / Code:
S00
Height:
3.00";Sensing Method=Thermal"
Reset Type - Relay:
Auto, Manual
Depth:
2.75";Features=Manual and Auto Reset"
Separate Mounting:
Yes, Additional Items Needed
Body Depth - Relay:
2.75 in
Overall Height - Relay:
3 in
Standards:
REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
Body Height - Relay:
3 in
Body Width - Relay:
1.77 in
Trip Class:
10
For Use With:
3RT201 Contactors
Mounting:
Contactor mounting
Starter Type:
IEC
Type:
thermal overload relay
Insulation:
IP20
Full Load Current Range:
.63 A / .63 A
Contact Rating:
B600 / R300
Operating Temperature:
-40°C to 70°C
Trip type:
CLASS 10
Size:
0.045 m / 0.076 m / 0.07 m
Contact configuration:
1 / 0 / 1
Environmental Conditions:
-55
Maximum Operating Temperature:
158 Degrees F
Frame Size:
S00
Maximum Overload Relay Current Setting:
0.63 A
Terminal Connection Type:
Screw Terminals
Includes Thermal Units:
Yes
Body Height:
4.64 in
Minimum Operating Temperature:
-40 Degrees F
Relay Style:
IEC
Phase:
Three
Overload Protection Type:
Thermal
Reset Type:
Auto, Manual
Maximum Voltage Rating:
690V AC
Number of Required Thermals:
3
Body Depth:
2.43 in
Body Width:
1.77 in
Includes Mounting Hardware:
Not Applicable
Overall Height:
4.64 in
Minimum Overload Relay Current Setting:
0.45 A
Auxiliary Contact Form:
1NO/1NC
IP Rating:
IP20
Compatible with Series:
SIRIUS
Mounting Style:
Direct To Contactor
Package Quantity:
1
