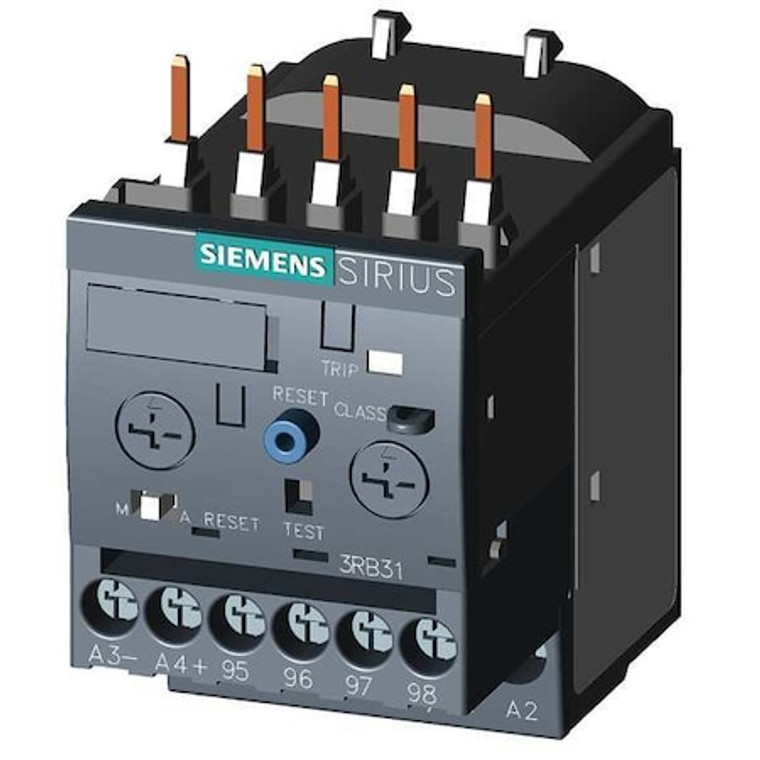

Overload Relay, 0.10 to 0.40A, 3P, NEMA S00 - 3RB31134RB0

Overload Relay, 0.10 to 0.40A, 3P, NEMA S00 - 3RB31134RB0

Siemens
SKU:
3RB31134RB0
|
UPC:
662643903126
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 0.4 A, Minimum Overload Relay Current Setting 0.1 A, Trip Class 5E/10E/20E/30E, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S00, Relay Style IEC
Additional Information
Country of Origin:
Czechia
Item:
Overload Relay
Item - Relay:
IEC Style Overload Relay
Current Range:
0.10 to 0.40A
Use With - Contactors and Starters:
Mfr. Series 3RT201 Contactors
Overload Relay Current Range:
0.10 to 0.40A
NEMA Size:
Not Applicable
Trip Class - Overload:
10, 20, 30, 5
Width:
1.77";Number of Poles=3"
Frame / Series / Class / Code:
S00
Reset Type - Relay:
Auto, Manual
Sensing Method:
Electronic
Height:
3.11";Depth=2.87""
Overall Height - Relay:
3.11 in
For Use With:
3RT201 Contactors
Features:
Earth Fault Detection, Manual and Auto Reset
Standards:
Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), REACH Art 33 Duty to Inform According to the Current List of Candidates, RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
Body Height - Relay:
3.11 in
Body Depth - Relay:
2.87 in
Separate Mounting:
Yes, Additional Items Needed
Trip Class:
5E/10E/20E/30E
Body Width - Relay:
1.77 in
Starter Type:
IEC
Number of auxiliary contacts as changer:
0
Power loss per pole, current-dependent [PlIp]:
0.03 watt
Lowest value adjustable current range:
0.1 ampere
Release class:
adjustable
description of product type:
3RB3
Number of auxiliary contacts as shutter:
1
Type of actuation:
AC
Number of auxiliary contacts as opener:
1
Connection type:
Screw connection
External reset possible:
Yes
Greatest value adjustable current range:
0.4 ampere
IP Rating:
IP20
Body Height:
4.76 in
Minimum Operating Temperature:
-13 Degrees F
Overall Height:
4.76 in
Maximum Operating Temperature:
140 Degrees F
Frame Size:
S00
Maximum Overload Relay Current Setting:
0.4 A
Mounting Style:
Direct To Contactor
Reset Type:
Auto, Manual
Body Width:
1.77 in
Auxiliary Contact Form:
1NO/1NC
Maximum Voltage Rating:
690V AC
Compatible with Series:
SIRIUS
Number of Required Thermals:
Not Applicable
Minimum Overload Relay Current Setting:
0.1 A
Overload Protection Type:
Electronic
Body Depth:
2.55 in
Relay Style:
IEC
Phase:
Three
Includes Mounting Hardware:
Not Applicable
Includes Thermal Units:
Not Applicable
Terminal Connection Type:
Screw Terminals
Package Quantity:
1
