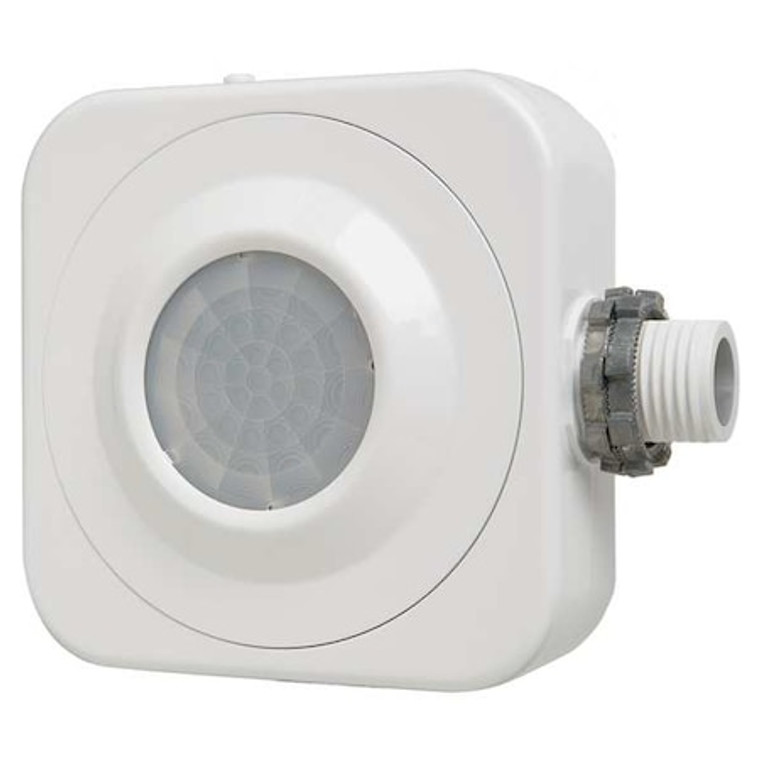

Occupancy Sensor, PIR, 2827 sq. ft. - CMRB 6 480

Occupancy Sensor, PIR, 2827 sq. ft. - CMRB 6 480

Sensorswitch
SKU:
CMRB 6 480
|
UPC:
745975809387
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
High Bay Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 480V AC, Maximum Coverage Area 2,827 sq ft, Maximum Mounting Height 45 ft, Load Rating @ 120V AC 800W/6.67A (Incandescent), Communication Method Hard Wired, Color White, Includes Not Applicable, Sensor Operation Occupancy, Lighting Technology Fluorescent, Incandescent, LED, Installation Location Fixture, Standards cUL Listed, RoHS Compliant, Overall Diameter Not Applicable
Additional Information
Country of Origin:
Mexico
Item - Motion Sensing and Dimming:
Occupancy Sensor
Communication Method - Motion Sensing and Dimming:
Hard Wired
Sensing Technology:
Passive Infrared (PIR)
Installation Location - Motion Sensor:
Fixture Mount
Coverage at Suggested Mounting Height:
2,827 sq ft
Operating Voltage - Motion Sensing and Dimming:
480 V AC
Color - Motion Sensing and Dimming:
White
Time Delay Adjustment Method - Motion Sensor:
Adaptive, Manual
Time Delay - Motion Sensor:
30 sec to 20 min
Max. Capacity @ 277VAC:
1200W (CFL, Fluorescent, Incandescent, LED)
Sensor Type:
Passive Infrared
Item:
High Bay Occupancy Sensor
Color:
White
Coverage Angle - Motion Sensor:
360 Degrees
Standards:
cUL Listed, RoHS Compliant
Operating Temp. Range:
14 Degrees to 160 Degrees F
Voltage:
480VAC
Suggested Mounting Height - Motion Sensor:
15 to 45 ft
Max. Capacity @ 480VAC:
2400VA (CFL, Fluorescent, Incandescent, LED)
Max. Capacity @ 120VAC:
Dependent on Control Unit Rating
Compatible With:
Fluorescent and Incandescent Lighting Loads
Lighting Technology:
Fluorescent, Incandescent, LED
Includes:
Not Applicable
Communication Method:
Hard Wired
Wall Plate:
Not Included
Series:
CMRB
Coverage Angle:
360 Degrees
Overall Depth:
1.55 in
Load Rating @ 480V AC:
2,400VA (Fluorescent, Incandescent, LED)
Maximum Operating Temperature:
185 Degrees F
Minimum Mounting Height:
15 ft
Overall Diameter:
Not Applicable
Minimum Operating Temperature:
14 Degrees F
Load Rating @ 120V AC:
800W/6.67A (Incandescent)
Manufacturer Warranty:
5 yr Limited
Maximum Mounting Height:
45 ft
Load Rating @ 277V AC:
1,200W (CFL, Fluorescent, Incandescent, LED)
Sensor Operation:
Occupancy
Coverage Type:
Small Motion
Overall Width:
4.55 in
Maximum Coverage Area:
2,827 sq ft
Maximum Time Delay:
20 min
Time Delay Adjustment Method:
Adaptive, Manual
Installation Location:
Fixture
Minimum Time Delay:
30 sec
Application Type:
Automotive & Parking, Education, Government, Healthcare, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail
Control Device Type:
Daylight Sensor, Dimming Switch
Voltage Rating:
208, 347, 480
Environmental Listing:
High Humidity
Mounting Type:
Fixture Attached
Control Protocol:
0-10V
Finish:
Gloss
Product Type:
Sensor
Package Quantity:
1
