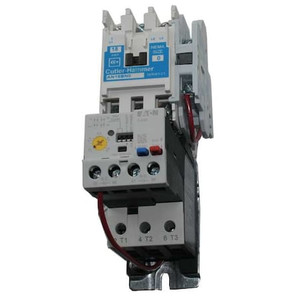

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 24V AC, 3 Poles, 1NO - AN19DN0T5E020

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 24V AC, 3 Poles, 1NO - AN19DN0T5E020

Eaton
SKU:
AN19DN0T5E020
|
UPC:
786685417394
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 20 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 4 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC
Additional Information
Country of Origin:
Dominican Republic
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
4 to 20A
Type:
Starter
Coil Volts:
24V AC
Enclosure NEMA Rating:
No Enclosure
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
7 1/2 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
27
NEMA Size:
1
Number of Poles:
3
HP @ 3 Phase - 480V:
10 hp
HP @ 1 Phase - 120V:
2 hp
Width:
5 in
Hz:
50/60
Depth:
7.5 in
Includes:
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
Height:
5 in
HP @ 3 Phase - 208V:
7 1/2 hp
HP @ 3 Phase - 575V:
10 hp
Features:
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
HP @ 1 Phase - 230V:
3 hp
Standards:
CE, CSA, UL Listed
Thermal Unit Code:
Not Applicable
Enclosure Type:
Open
Weight:
3.8 lb
Product Name:
Eaton Freedom NEMA motor control starter
Relay:
C440 electronic
Product Width:
2.6 in
Mounting:
Horizontal
Product Length/Depth:
4.98 in
Certifications:
UL;CSA;CE;NEMA
Overload Relay:
C440 electronic
Nema Frame Size:
NEMA Size 1
Amperage Rating:
27 A
Product Height:
5.5 in
Coil Voltage:
24V AC
Accessories:
Freedom NEMA
Special Features:
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
Configuration:
Non-reversing
Trip Class:
10A/10/20/30
Starter Style:
NEMA
Horsepower @ Three Phase - 208V AC:
7 1/2 hp
Includes Auxiliary Contacts:
Yes
Overall Depth:
4.98 in
Operator Function:
Not Applicable
Mounting Style:
Surface
Operator:
None
Overload Protection Type:
Electronic
Mounting Postion:
Horizontal
Series:
Freedom
Minimum Overload Relay Current Setting:
4 A
Reversing Capability:
Non-Reversing
Horsepower @ Three Phase - 240V AC:
7 1/2 hp
Auxiliary Contact Module Capacity:
6
Maximum Overload Relay Current Setting:
20 A
Horsepower @ Three Phase - 480V AC:
10 hp
Frequency:
50/60 Hz
NEMA Enclosure Rating:
No Enclosure
Current AC:
27 A
Phase:
Three
Frame Size:
S1
Overall Height:
5.5 in
Horsepower @ Single Phase - 240V AC:
3 hp
Horsepower @ Single Phase - 120V AC:
2 hp
Maximum Voltage Rating:
600V AC
Horsepower @ Three Phase - 600V AC:
10 hp
Number of Auxillary Contacts:
1
Overall Width:
2.6 in
Hazardous Location Specification:
Not Applicable
Package Quantity:
1
