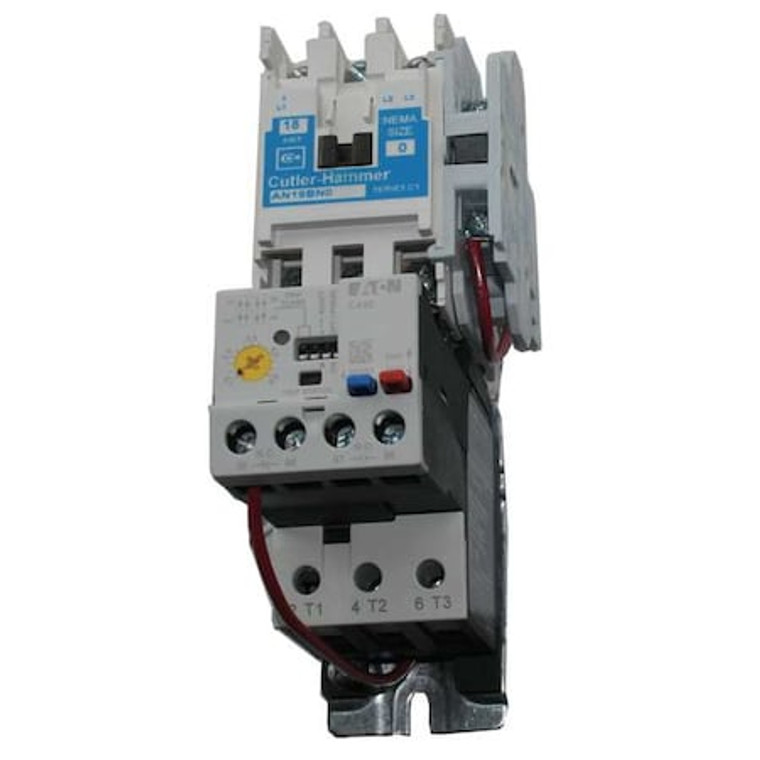

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 24V AC, 3 Poles, 1NO - AN19BN0T5E020

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 24V AC, 3 Poles, 1NO - AN19BN0T5E020

Eaton
SKU:
AN19BN0T5E020
|
UPC:
786685414546
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 20 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 4 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC
Additional Information
Country of Origin:
Dominican Republic
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
4 to 20A
Type:
Starter
Coil Volts:
24V AC
Enclosure NEMA Rating:
No Enclosure
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
3 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
18
NEMA Size:
0
Number of Poles:
3
HP @ 3 Phase - 480V:
5 hp
HP @ 1 Phase - 120V:
1 hp
HP @ 3 Phase - 208V:
3 hp
HP @ 1 Phase - 230V:
2 hp
Hz:
50/60
Height:
6 in
Standards:
CE, CSA, UL Listed
HP @ 3 Phase - 575V:
5 hp
Includes:
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
Features:
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
Width:
4 in
Depth:
8 in
Enclosure Type:
Open
Thermal Unit Code:
Not Applicable
Weight:
2.3 lb
Special Features:
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
Product Length/Depth:
4.9 in
Product Width:
1.97 in
Relay:
C440 electronic
Product Height:
6.6 in
Mounting:
Horizontal
Overload Relay:
C440 electronic
Configuration:
Non-reversing
Product Name:
Eaton Freedom NEMA motor control starter
Amperage Rating:
18 A
Nema Frame Size:
NEMA Size 0
Coil Voltage:
24V AC
Certifications:
UL;CSA;CE;NEMA
Mounting Postion:
Horizontal
Phase:
Three
Number of Auxillary Contacts:
1
Hazardous Location Specification:
Not Applicable
Overall Width:
1.97 in
Frequency:
50/60 Hz
Starter Style:
NEMA
NEMA Enclosure Rating:
No Enclosure
Trip Class:
10A/10/20/30
Series:
Freedom
Maximum Overload Relay Current Setting:
20 A
Current AC:
18 A
Horsepower @ Three Phase - 480V AC:
5 hp
Includes Auxiliary Contacts:
Yes
Horsepower @ Three Phase - 600V AC:
5 hp
Maximum Voltage Rating:
600V AC
Frame Size:
S0
Horsepower @ Single Phase - 120V AC:
1 hp
Overall Depth:
4.9 in
Overall Height:
6.6 in
Horsepower @ Three Phase - 208V AC:
3 hp
Mounting Style:
Surface
Auxiliary Contact Module Capacity:
6
Minimum Overload Relay Current Setting:
4 A
Operator Function:
Not Applicable
Operator:
None
Reversing Capability:
Non-Reversing
Horsepower @ Three Phase - 240V AC:
3 hp
Overload Protection Type:
Electronic
Horsepower @ Single Phase - 240V AC:
2 hp
Package Quantity:
1
