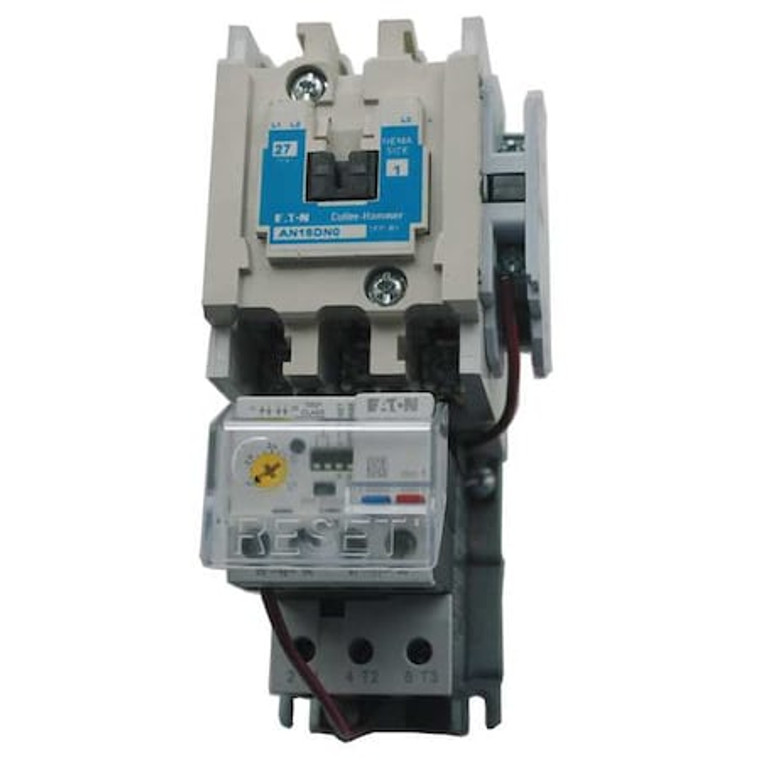

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 240V AC, 3 Poles, 1NO - AN19DN0B5E045

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 240V AC, 3 Poles, 1NO - AN19DN0B5E045

Eaton
SKU:
AN19DN0B5E045
|
UPC:
786685417721
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 45 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 9 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC
Additional Information
Country of Origin:
Dominican Republic
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
9 to 45A
Type:
Starter
Coil Volts:
240V AC
Enclosure NEMA Rating:
No Enclosure
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
7 1/2 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
27
NEMA Size:
1
Number of Poles:
3
HP @ 3 Phase - 480V:
10 hp
HP @ 1 Phase - 120V:
2 hp
HP @ 3 Phase - 208V:
7 1/2 hp
Features:
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
Width:
5 in
HP @ 3 Phase - 575V:
10 hp
Depth:
7.5 in
Standards:
CE, CSA, UL Listed
Height:
5 in
Includes:
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
Hz:
50/60
HP @ 1 Phase - 230V:
3 hp
Enclosure Type:
Open
Thermal Unit Code:
Not Applicable
Weight:
4.25 lb
Product Name:
Eaton Freedom NEMA motor control starter
Amperage Rating:
27 A
Special Features:
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
Overload Relay:
C440 electronic
Certifications:
UL;CSA;CE;NEMA
Nema Frame Size:
NEMA Size 1
Coil Voltage:
220/240V AC
Relay:
C440 electronic
Product Width:
2.6 in
Product Length/Depth:
4.98 in
Product Height:
7.1 in
Mounting:
Horizontal
Configuration:
Non-reversing
Overload Protection Type:
Electronic
Maximum Voltage Rating:
600V AC
Overall Height:
7.1 in
Frame Size:
S1
Operator Function:
Not Applicable
Maximum Overload Relay Current Setting:
45 A
Horsepower @ Three Phase - 600V AC:
10 hp
Horsepower @ Three Phase - 240V AC:
7 1/2 hp
Operator:
None
Horsepower @ Single Phase - 120V AC:
2 hp
Horsepower @ Single Phase - 240V AC:
3 hp
Frequency:
50/60 Hz
Reversing Capability:
Non-Reversing
Overall Width:
2.6 in
Minimum Overload Relay Current Setting:
9 A
Trip Class:
10A/10/20/30
Mounting Postion:
Horizontal
NEMA Enclosure Rating:
No Enclosure
Overall Depth:
4.98 in
Horsepower @ Three Phase - 480V AC:
10 hp
Series:
Freedom
Includes Auxiliary Contacts:
Yes
Auxiliary Contact Module Capacity:
6
Mounting Style:
Surface
Number of Auxillary Contacts:
1
Phase:
Three
Hazardous Location Specification:
Not Applicable
Horsepower @ Three Phase - 208V AC:
7 1/2 hp
Starter Style:
NEMA
Current AC:
27 A
Package Quantity:
1
