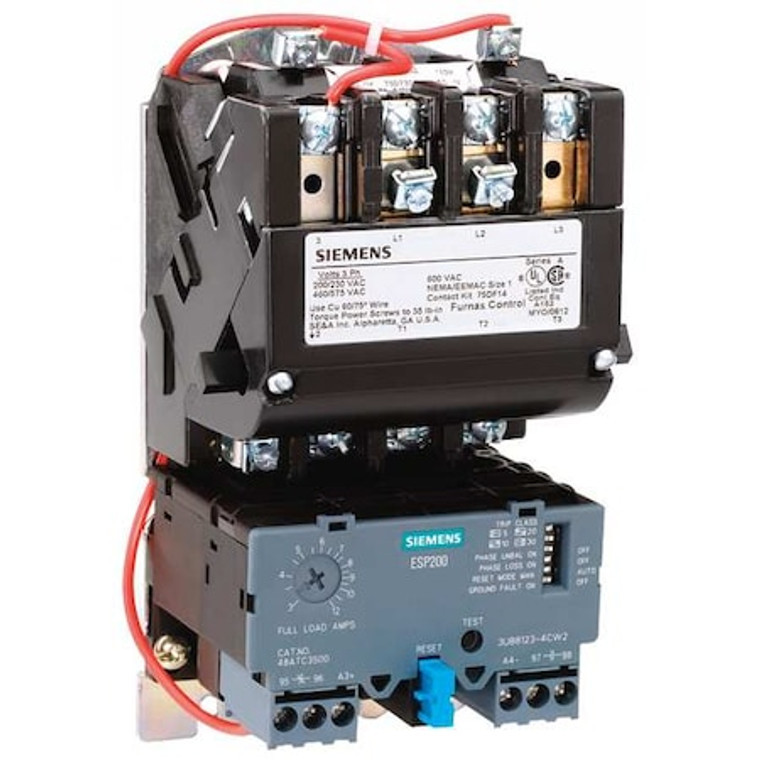

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 240V AC, 3 Poles, 1NO - 14DUE32AG

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 240V AC, 3 Poles, 1NO - 14DUE32AG

Siemens
SKU:
14DUE32AG
|
UPC:
783087945821
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 40 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 10 A, Trip Class 5/10/20/30, Series FVNR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 190-220/220-240V AC
Additional Information
Country of Origin:
Mexico
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
10 to 40A
Coil Volts:
240V AC
Enclosure NEMA Rating:
No Enclosure
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
7 1/2 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
27
NEMA Size:
1
Number of Poles:
3
HP @ 3 Phase - 480V:
10 hp
Hz:
50/60
Width:
3.5 in
Standards:
CSA 22.2 No.14, NEMA ICS 2, UL 508
Depth:
3.75 in
HP @ 3 Phase - 208V:
7 1/2 hp
Height:
7.44 in
Thermal Unit Code:
Not Applicable
Overall Height:
7.44 in
Maximum Overload Relay Current Setting:
40 A
Resistance Properties:
Corrosion Resistant, Dust Resistant, Watertight
Trip Class:
5/10/20/30
Minimum Operating Temperature:
-4 Degrees F
Minimum Overload Relay Current Setting:
10 A
Series:
FVNR
Includes Auxiliary Contacts:
Yes
Mounting Postion:
Vertical
Number of Auxillary Contacts:
1
Mechanical Operating Durability:
10,000,000
Current AC:
27 A
Terminal Connection Type:
Screw Terminals
Maximum Voltage Rating:
600V AC
Response Time:
10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)
Horsepower @ Three Phase - 240V AC:
7 1/2 hp
Starter Style:
NEMA
Auxiliary Contact Module Capacity:
8
Horsepower @ Three Phase - 208V AC:
7 1/2 hp
Overall Width:
5.75 in
Horsepower @ Three Phase - 600V AC:
0 hp
Overall Depth:
3.75 in
Horsepower @ Three Phase - 480V AC:
10 hp
Overload Protection Type:
Electronic
Reversing Capability:
Non-Reversing
Frequency:
50/60 Hz
NEMA Enclosure Rating:
No Enclosure
Phase:
Three
Mounting Style:
Surface
Maximum Operating Temperature:
104 Degrees F
Coil Voltage:
190-220/220-240V AC
Package Quantity:
1
