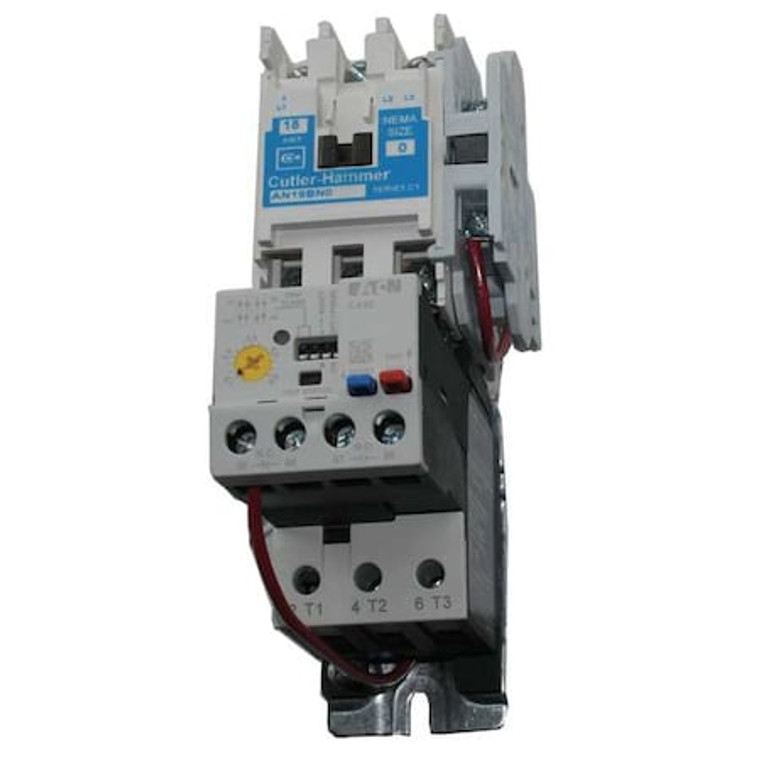

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 208V AC, 3 Poles, 1NO - AN19BN0E5E020

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 208V AC, 3 Poles, 1NO - AN19BN0E5E020

Eaton
SKU:
AN19BN0E5E020
|
UPC:
786685414522
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 20 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 4 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC
Additional Information
Country of Origin:
Dominican Republic
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
4 to 20A
Type:
Starter
Coil Volts:
208V AC
Enclosure NEMA Rating:
No Enclosure
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
3 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
18
NEMA Size:
0
Number of Poles:
3
HP @ 3 Phase - 480V:
5 hp
HP @ 1 Phase - 120V:
1 hp
Width:
4 in
Standards:
CE, CSA, UL Listed
Depth:
8 in
HP @ 3 Phase - 575V:
5 hp
Hz:
50/60
Features:
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
HP @ 3 Phase - 208V:
3 hp
Height:
6 in
Includes:
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
HP @ 1 Phase - 230V:
2 hp
Enclosure Type:
Open
Thermal Unit Code:
Not Applicable
Weight:
2.25 lb
Product Width:
1.97 in
Amperage Rating:
18 A
Coil Voltage:
208V AC
Product Length/Depth:
4.9 in
Configuration:
Non-reversing
Accessories:
Freedom NEMA
Nema Frame Size:
NEMA Size 0
Product Name:
Eaton Freedom NEMA motor control starter
Mounting:
Horizontal
Certifications:
UL;CSA;CE;NEMA
Special Features:
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
Overload Relay:
C440 electronic
Relay:
C440 electronic
Product Height:
6.6 in
Number of Auxillary Contacts:
1
Trip Class:
10A/10/20/30
Auxiliary Contact Module Capacity:
6
Horsepower @ Three Phase - 208V AC:
3 hp
Horsepower @ Three Phase - 240V AC:
3 hp
Overall Depth:
4.9 in
Phase:
Three
Maximum Overload Relay Current Setting:
20 A
Horsepower @ Three Phase - 480V AC:
5 hp
Reversing Capability:
Non-Reversing
NEMA Enclosure Rating:
No Enclosure
Horsepower @ Single Phase - 120V AC:
1 hp
Operator:
None
Mounting Style:
Surface
Frequency:
60 Hz
Horsepower @ Three Phase - 600V AC:
5 hp
Includes Auxiliary Contacts:
Yes
Horsepower @ Single Phase - 240V AC:
2 hp
Mounting Postion:
Horizontal
Frame Size:
S0
Series:
Freedom
Maximum Voltage Rating:
600V AC
Overall Width:
1.97 in
Overload Protection Type:
Electronic
Overall Height:
6.6 in
Starter Style:
NEMA
Operator Function:
Not Applicable
Current AC:
18 A
Minimum Overload Relay Current Setting:
4 A
Hazardous Location Specification:
Not Applicable
Package Quantity:
1
