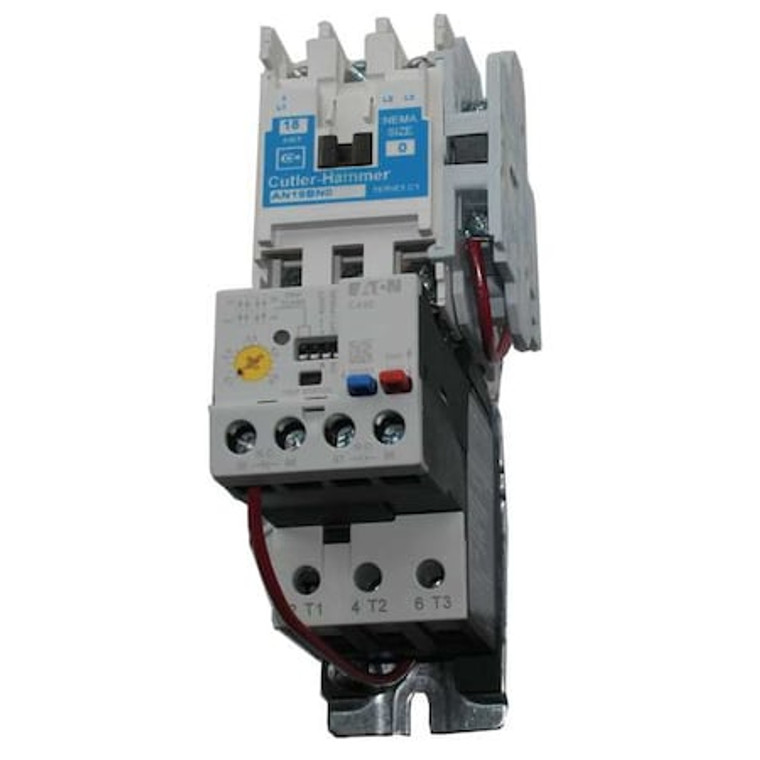

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120V AC, 3 Poles, 1NO - AN19BN0A5E1P6

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120V AC, 3 Poles, 1NO - AN19BN0A5E1P6

Eaton
SKU:
AN19BN0A5E1P6
|
UPC:
786685414621
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 1.65 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 0.33 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC
Additional Information
Country of Origin:
Dominican Republic
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
0.33 to 1.65A
Type:
Starter
Coil Volts:
120V AC
Enclosure NEMA Rating:
No Enclosure
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
3 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
18
NEMA Size:
0
Number of Poles:
3
HP @ 3 Phase - 480V:
5 hp
HP @ 1 Phase - 120V:
1 hp
Standards:
CE, CSA, UL Listed
HP @ 3 Phase - 208V:
3 hp
HP @ 3 Phase - 575V:
5 hp
Height:
6 in
Width:
4 in
HP @ 1 Phase - 230V:
2 hp
Hz:
50/60
Features:
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
Depth:
8 in
Includes:
Class 20 Solid State Ambient-Compensated Overload Relay and Instantaneous Magnetic Trip Mechanism
Enclosure Type:
Open
Thermal Unit Code:
Not Applicable
Weight:
2.2 lb
Product Height:
6.6 in
Nema Frame Size:
NEMA Size 0
Product Width:
1.97 in
Product Length/Depth:
4.9 in
Accessories:
Freedom NEMA
Special Features:
With C440 EOLR standard feature set, SEL reset, SEL class (10a, 10, 20, 30)
Coil Voltage:
110/120V AC
Relay:
C440 electronic
Product Name:
Eaton Freedom NEMA motor control starter
Mounting:
Horizontal
Amperage Rating:
18 A
Configuration:
Non-reversing
Overload Relay:
C440 electronic
Certifications:
UL;CSA;CE;NEMA
Maximum Overload Relay Current Setting:
1.65 A
NEMA Enclosure Rating:
No Enclosure
Operator Function:
Not Applicable
Horsepower @ Three Phase - 600V AC:
5 hp
Starter Style:
NEMA
Maximum Voltage Rating:
600V AC
Number of Auxillary Contacts:
1
Horsepower @ Single Phase - 120V AC:
1 hp
Trip Class:
10A/10/20/30
Horsepower @ Three Phase - 208V AC:
3 hp
Overload Protection Type:
Electronic
Horsepower @ Three Phase - 480V AC:
5 hp
Overall Height:
6.6 in
Horsepower @ Three Phase - 240V AC:
3 hp
Operator:
None
Reversing Capability:
Non-Reversing
Mounting Postion:
Horizontal
Series:
Freedom
Frame Size:
S0
Auxiliary Contact Module Capacity:
6
Overall Width:
1.97 in
Overall Depth:
4.9 in
Frequency:
50/60 Hz
Minimum Overload Relay Current Setting:
0.33 A
Phase:
Three
Includes Auxiliary Contacts:
Yes
Current AC:
18 A
Mounting Style:
Surface
Horsepower @ Single Phase - 240V AC:
2 hp
Hazardous Location Specification:
Not Applicable
Package Quantity:
1
