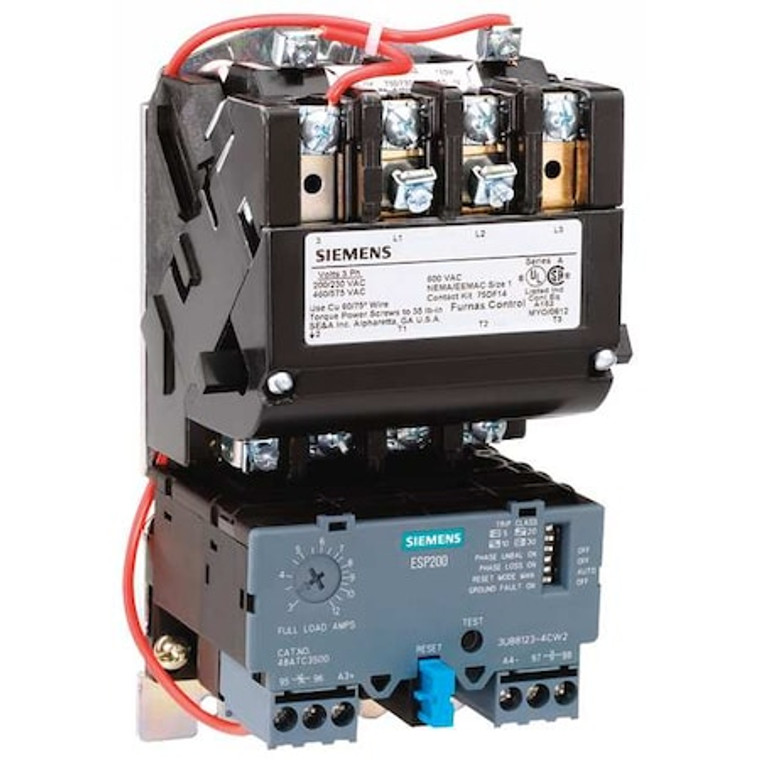

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120V AC, 3 Poles, 1NO - 14BUC32AF

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120V AC, 3 Poles, 1NO - 14BUC32AF

Siemens
SKU:
14BUC32AF
|
UPC:
783087939103
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 12 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 3 A, Trip Class 5/10/20/30, Series FVNR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110/120V AC, Horsepower @ Three Phase - 240V AC 1 1/2 hp
Additional Information
Country of Origin:
Mexico
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
3 to 12A
Coil Volts:
120V AC
Enclosure NEMA Rating:
No Enclosure
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
1 1/2 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
9
NEMA Size:
00
Number of Poles:
3
HP @ 3 Phase - 480V:
2 hp
Hz:
50/60
Depth:
3.75 in
Width:
3.5 in
HP @ 3 Phase - 208V:
1 1/2 hp
Standards:
CSA 22.2 No.14, NEMA ICS 2, UL 508
Height:
7.44 in
Thermal Unit Code:
Not Applicable
Reversing Capability:
Non-Reversing
Includes Auxiliary Contacts:
Yes
Response Time:
10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)
Phase:
Three
Overall Width:
5.75 in
Overload Protection Type:
Electronic
Auxiliary Contact Module Capacity:
8
Maximum Overload Relay Current Setting:
12 A
Number of Auxillary Contacts:
1
Maximum Operating Temperature:
104 Degrees F
Minimum Overload Relay Current Setting:
3 A
Mounting Style:
Surface
Terminal Connection Type:
Screw Terminals
Starter Style:
NEMA
Horsepower @ Three Phase - 240V AC:
1 1/2 hp
Horsepower @ Three Phase - 208V AC:
1 1/2 hp
Overall Height:
7.44 in
Maximum Voltage Rating:
600V AC
NEMA Enclosure Rating:
No Enclosure
Mechanical Operating Durability:
10,000,000
Trip Class:
5/10/20/30
Current AC:
9 A
Coil Voltage:
110/120V AC
Overall Depth:
3.75 in
Minimum Operating Temperature:
-4 Degrees F
Series:
FVNR
Mounting Postion:
Vertical
Horsepower @ Three Phase - 480V AC:
2 hp
Frequency:
50/60 Hz
Package Quantity:
1
