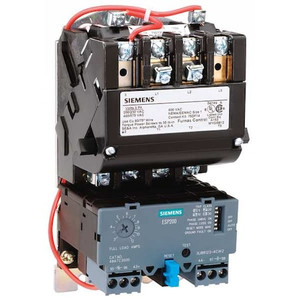

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120 to 240V AC, 3 Poles, 1NO - 14IUH32AA

Nonreversing NEMA Magnetic Motor Starter, No Enclosure NEMA Rating, 120 to 240V AC, 3 Poles, 1NO - 14IUH32AA

Siemens
SKU:
14IUH32AA
|
UPC:
783087817975
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 200 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 50 A, Trip Class 5/10/20/30, Series FVNR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110-120/220-240V AC
Additional Information
Country of Origin:
Mexico
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
50 to 200A
Coil Volts:
120 to 240V AC
Enclosure NEMA Rating:
No Enclosure
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
40 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
115
NEMA Size:
3-1/2
Number of Poles:
3
HP @ 3 Phase - 480V:
75 hp
Hz:
50/60
HP @ 3 Phase - 208V:
30 hp
Width:
4.5 in
Height:
9.78 in
Standards:
CSA 22.2 No.14, NEMA ICS 2, UL 508
HP @ 3 Phase - 575V:
75 hp
Depth:
5.19 in
Thermal Unit Code:
Not Applicable
Auxiliary Contact Module Capacity:
7
Overload Protection Type:
Electronic
Minimum Overload Relay Current Setting:
50 A
Reversing Capability:
Non-Reversing
Frequency:
60 Hz
Current AC:
115 A
Horsepower @ Three Phase - 480V AC:
75 hp
Trip Class:
5/10/20/30
Overall Height:
9.78 in
Minimum Operating Temperature:
-4 Degrees F
Number of Auxillary Contacts:
1
Horsepower @ Three Phase - 240V AC:
40 hp
Mechanical Operating Durability:
50,000,000
Overall Width:
6.75 in
Phase:
Three
Includes Auxiliary Contacts:
Yes
Maximum Overload Relay Current Setting:
200 A
Mounting Style:
Surface
Response Time:
10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)
Starter Style:
NEMA
Maximum Voltage Rating:
600V AC
Terminal Connection Type:
Screw Terminals
NEMA Enclosure Rating:
No Enclosure
Series:
FVNR
Overall Depth:
5.19 in
Maximum Operating Temperature:
104 Degrees F
Horsepower @ Three Phase - 208V AC:
30 hp
Mounting Postion:
Vertical
Horsepower @ Three Phase - 600V AC:
75 hp
Coil Voltage:
110-120/220-240V AC
Package Quantity:
1
