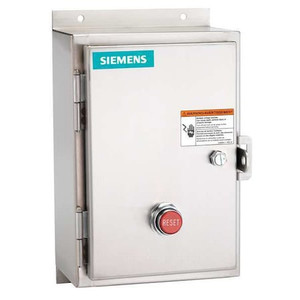

Nonreversing NEMA Magnetic Motor Starter, 4, 4X NEMA Rating, 480V AC, 3 Poles, 1NO - 14DUC32WH

Nonreversing NEMA Magnetic Motor Starter, 4, 4X NEMA Rating, 480V AC, 3 Poles, 1NO - 14DUC32WH

Siemens
SKU:
14DUC32WH
|
UPC:
783087944497
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 12 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 3 A, Trip Class 5/10/20/30, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 380-440/440-480V AC, Horsepower @ Three Phase - 600V AC 5 hp
Additional Information
Country of Origin:
United States
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
3 to 12A
Coil Volts:
480V AC
Enclosure NEMA Rating:
4, 4X
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
2 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
27
NEMA Size:
1
Number of Poles:
3
HP @ 3 Phase - 480V:
5 hp
HP @ 3 Phase - 575V:
5 hp
Standards:
CSA 22.2 No.14, NEMA ICS 2, UL 508
HP @ 3 Phase - 208V:
2 hp
Hz:
50/60
Width:
8 in
Height:
13 in
Depth:
5 in
Thermal Unit Code:
Not Applicable
Overall Height:
13 in
Auxiliary Contact Module Capacity:
8
Horsepower @ Three Phase - 240V AC:
2 hp
Overload Protection Type:
Electronic
Current AC:
27 A
Overall Depth:
5 in
Response Time:
10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)
Terminal Connection Type:
Screw Terminals
Mounting Style:
Surface
Horsepower @ Three Phase - 600V AC:
5 hp
Mounting Postion:
Vertical
Trip Class:
5/10/20/30
NEMA Enclosure Rating:
4X
Minimum Overload Relay Current Setting:
3 A
Coil Voltage:
380-440/440-480V AC
Maximum Overload Relay Current Setting:
12 A
Maximum Operating Temperature:
104 Degrees F
Reversing Capability:
Non-Reversing
Number of Auxillary Contacts:
1
Mechanical Operating Durability:
10,000,000
Horsepower @ Three Phase - 480V AC:
5 hp
Starter Style:
NEMA
Minimum Operating Temperature:
-4 Degrees F
Includes Auxiliary Contacts:
Yes
Phase:
Three
Overall Width:
8 in
Horsepower @ Three Phase - 208V AC:
2 hp
Maximum Voltage Rating:
600V AC
Frequency:
50/60 Hz
Package Quantity:
1
