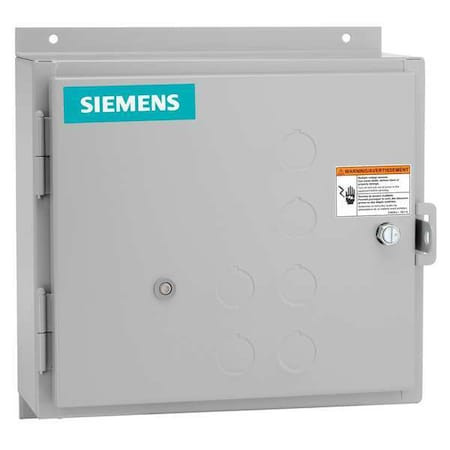

Nonreversing NEMA Magnetic Motor Starter, 12 NEMA Rating, 208V AC, 3 Poles, 1NO - 14FUF320D

Nonreversing NEMA Magnetic Motor Starter, 12 NEMA Rating, 208V AC, 3 Poles, 1NO - 14FUF320D

Siemens
SKU:
14FUF320D
|
UPC:
783087947214
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 52 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 13 A, Trip Class 5/10/20/30, Series FVNR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 208V AC, Horsepower @ Three Phase - 600V AC 25 hp
Additional Information
Country of Origin:
United States
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
13 to 52A
Coil Volts:
208V AC
Enclosure NEMA Rating:
12
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
15 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
45
NEMA Size:
2
Number of Poles:
3
HP @ 3 Phase - 480V:
25 hp
Hz:
60
Standards:
CSA 22.2 No.14, NEMA ICS 2, UL 508
HP @ 3 Phase - 208V:
10 hp
HP @ 3 Phase - 575V:
25 hp
Width:
8 in
Depth:
6 in
Height:
16 in
Thermal Unit Code:
Not Applicable
Horsepower @ Three Phase - 240V AC:
15 hp
Overall Depth:
6 in
Response Time:
10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)
Current AC:
45 A
Terminal Connection Type:
Screw Terminals
Auxiliary Contact Module Capacity:
7
Trip Class:
5/10/20/30
Maximum Voltage Rating:
600V AC
Horsepower @ Three Phase - 480V AC:
25 hp
Overload Protection Type:
Electronic
Horsepower @ Three Phase - 208V AC:
10 hp
Mounting Style:
Surface
Minimum Overload Relay Current Setting:
13 A
Overall Width:
8 in
Reversing Capability:
Non-Reversing
Phase:
Three
Coil Voltage:
208V AC
Horsepower @ Three Phase - 600V AC:
25 hp
Maximum Overload Relay Current Setting:
52 A
Includes Auxiliary Contacts:
Yes
Maximum Operating Temperature:
104 Degrees F
NEMA Enclosure Rating:
12
Minimum Operating Temperature:
-4 Degrees F
Mounting Hole Distance - Width:
5 in
Mounting Hole Diameter:
0.28 in
Frequency:
60 Hz
Series:
FVNR
Number of Auxillary Contacts:
1
Starter Style:
NEMA
Mechanical Operating Durability:
10,000,000
Overall Height:
16 in
Mounting Postion:
Vertical
Mounting Hole Distance - Height:
15.25 in
Package Quantity:
1
