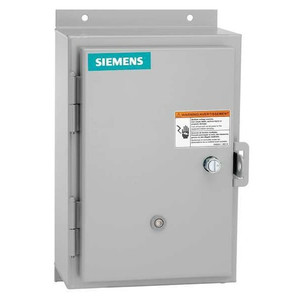

Nonreversing NEMA Magnetic Motor Starter, 12 NEMA Rating, 120 to 240V AC, 3 Poles, 1NO - 14HUG320A

Nonreversing NEMA Magnetic Motor Starter, 12 NEMA Rating, 120 to 240V AC, 3 Poles, 1NO - 14HUG320A

Siemens
SKU:
14HUG320A
|
UPC:
783087948594
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 100 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 25 A, Trip Class 5/10/20/30, Series FVNR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110-120/220-240V AC
Additional Information
Country of Origin:
United States
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
25 to 100A
Coil Volts:
120 to 240V AC
Enclosure NEMA Rating:
12
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
30 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
90
NEMA Size:
3
Number of Poles:
3
HP @ 3 Phase - 480V:
50 hp
Width:
13 in
HP @ 3 Phase - 575V:
50 hp
Hz:
50/60
Depth:
8 in
Standards:
CSA 22.2 No.14, NEMA ICS 2, UL 508
HP @ 3 Phase - 208V:
25 hp
Height:
26 in
Thermal Unit Code:
Not Applicable
Frequency:
60 Hz
Overload Protection Type:
Electronic
Current AC:
90 A
Overall Height:
26 in
Mounting Postion:
Vertical
Minimum Overload Relay Current Setting:
25 A
Maximum Voltage Rating:
600V AC
Overall Width:
13 in
Minimum Operating Temperature:
-4 Degrees F
Reversing Capability:
Non-Reversing
Response Time:
14 to 19 msec (OFF-Delay Time), 26 to 41 msec (ON-Delay Time)
Trip Class:
5/10/20/30
Horsepower @ Three Phase - 208V AC:
25 hp
Coil Voltage:
110-120/220-240V AC
Number of Auxillary Contacts:
1
Horsepower @ Three Phase - 240V AC:
30 hp
Starter Style:
NEMA
Horsepower @ Three Phase - 600V AC:
50 hp
Series:
FVNR
Maximum Overload Relay Current Setting:
100 A
Phase:
Three
Auxiliary Contact Module Capacity:
7
Mounting Style:
Surface
Terminal Connection Type:
Screw Terminals
NEMA Enclosure Rating:
12
Horsepower @ Three Phase - 480V AC:
50 hp
Includes Auxiliary Contacts:
Yes
Maximum Operating Temperature:
104 Degrees F
Mechanical Operating Durability:
50,000,000
Overall Depth:
8 in
Package Quantity:
1
