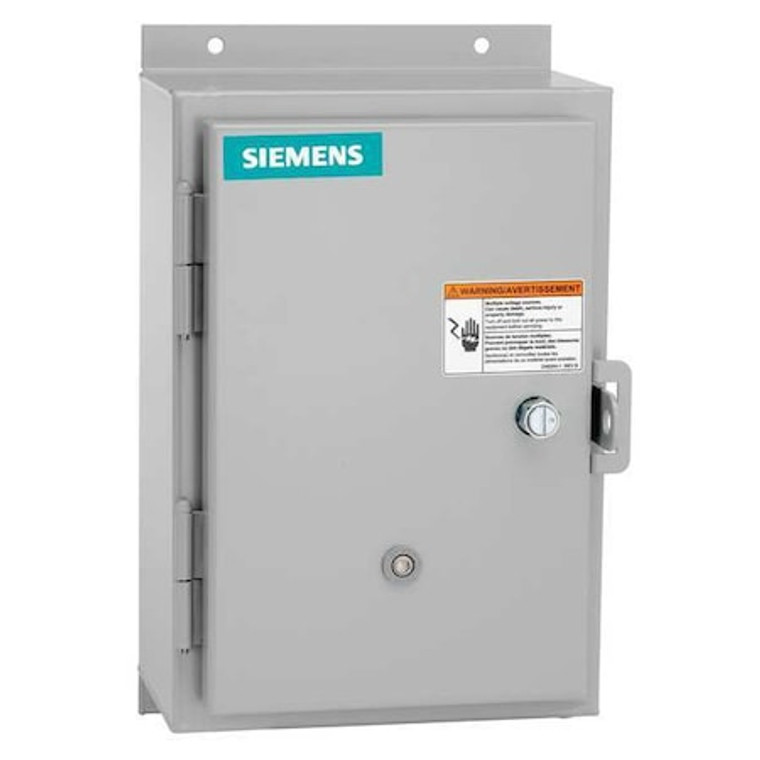

Nonreversing NEMA Magnetic Motor Starter, 12 NEMA Rating, 120 to 240V AC, 3 Poles, 1NO - 14DUA320A

Nonreversing NEMA Magnetic Motor Starter, 12 NEMA Rating, 120 to 240V AC, 3 Poles, 1NO - 14DUA320A

Siemens
SKU:
14DUA320A
|
UPC:
783087942615
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 1 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 0.25 A, Trip Class 5/10/20/30, Series FVNR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110-120/220-240V AC
Additional Information
Country of Origin:
United States
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
0.25 to 1A
Coil Volts:
120 to 240V AC
Enclosure NEMA Rating:
12
Auxiliary Contact Form:
1NO
HP @ 3 Phase - 240V:
1/6 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
27
NEMA Size:
1
Number of Poles:
3
HP @ 3 Phase - 480V:
1/3 hp
Height:
13 in
Depth:
5 in
Standards:
CSA 22.2 No.14, NEMA ICS 2, UL 508
HP @ 3 Phase - 208V:
1/6 hp
Hz:
50/60
Width:
8 in
HP @ 3 Phase - 575V:
1/2 hp
Thermal Unit Code:
Not Applicable
Auxiliary Contact Module Capacity:
8
Series:
FVNR
Horsepower @ Three Phase - 600V AC:
1/2 hp
Number of Auxillary Contacts:
1
Overload Protection Type:
Electronic
Phase:
Three
Current AC:
27 A
Maximum Overload Relay Current Setting:
1 A
Horsepower @ Three Phase - 240V AC:
17/100 hp
Overall Width:
8 in
Reversing Capability:
Non-Reversing
Mounting Style:
Surface
Starter Style:
NEMA
Coil Voltage:
110-120/220-240V AC
NEMA Enclosure Rating:
12
Horsepower @ Three Phase - 208V AC:
17/100 hp
Maximum Voltage Rating:
600V AC
Overall Height:
13 in
Terminal Connection Type:
Screw Terminals
Minimum Overload Relay Current Setting:
0.25 A
Mechanical Operating Durability:
10,000,000
Trip Class:
5/10/20/30
Overall Depth:
5 in
Horsepower @ Three Phase - 480V AC:
1/3 hp
Mounting Postion:
Vertical
Minimum Operating Temperature:
-4 Degrees F
Includes Auxiliary Contacts:
Yes
Frequency:
60 Hz
Maximum Operating Temperature:
104 Degrees F
Response Time:
10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)
Package Quantity:
1
