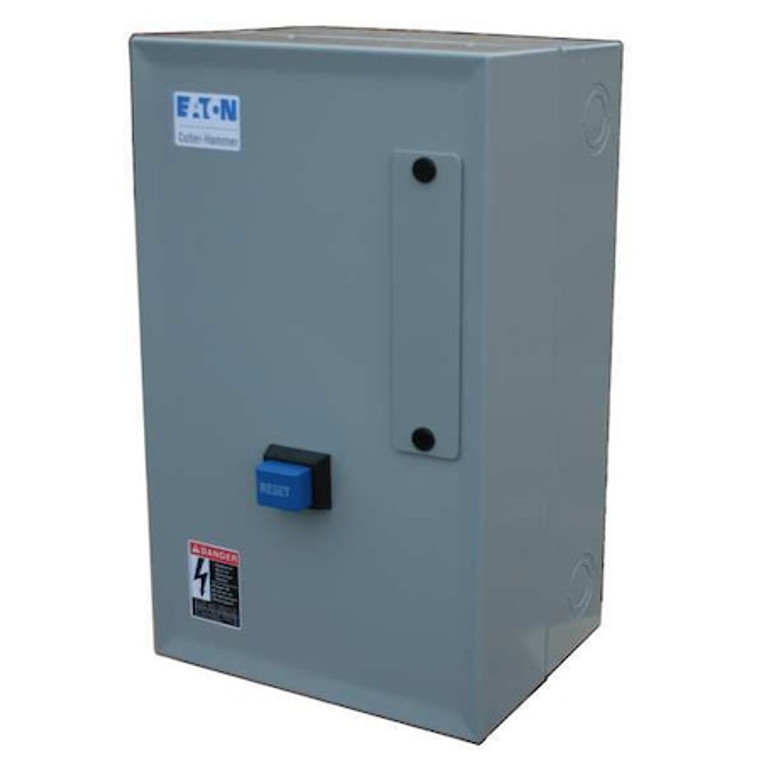

Nonreversing NEMA Magnetic Motor Starter, 1 NEMA Rating, 480V AC, 3 Poles, 1NC/1NO - ECN0501CAA-R63/B

Nonreversing NEMA Magnetic Motor Starter, 1 NEMA Rating, 480V AC, 3 Poles, 1NC/1NO - ECN0501CAA-R63/B

Eaton
SKU:
ECN0501CAA-R63/B
|
UPC:
786685450483
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 5 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 1 A, Trip Class 10A/10/20/30, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 2, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO/1NC, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 480V AC, Horsepower @ Three Phase - 600V AC 5 hp
Additional Information
Country of Origin:
United States
Item:
NEMA Magnetic Motor Starter
Overload Relay Amp Setting:
1 to 5A
Coil Volts:
480V AC
Enclosure NEMA Rating:
1
Auxiliary Contact Form:
1NO/1NC
HP @ 3 Phase - 240V:
3 hp
Starter Type:
NEMA Style
Action:
Nonreversing
Amps AC:
18
NEMA Size:
0
Number of Poles:
3
HP @ 3 Phase - 480V:
5 hp
HP @ 1 Phase - 120V:
1 hp
HP @ 3 Phase - 575V:
5 hp
Depth:
5.84 in
HP @ 3 Phase - 208V:
3 hp
Standards:
UL E1491
Height:
12.6 in
HP @ 1 Phase - 230V:
2 hp
Includes:
Solid State Overload Relay
Hz:
50/60
Width:
7.73 in
Features:
Solid State Overload Relay
Thermal Unit Code:
Not Applicable
Weight:
13 lb
Minimum Overload Relay Current Setting:
1 A
Trip Class:
10A/10/20/30
Starter Style:
NEMA
Horsepower @ Three Phase - 600V AC:
5 hp
Horsepower @ Three Phase - 240V AC:
3 hp
Includes Auxiliary Contacts:
Yes
Coil Voltage:
480V AC
Number of Auxillary Contacts:
2
Horsepower @ Three Phase - 208V AC:
3 hp
Overall Depth:
10.76 in
Phase:
Three
Horsepower @ Single Phase - 120V AC:
1 hp
Series:
Freedom
Maximum Voltage Rating:
600V AC
Overall Width:
6.06 in
Overall Height:
7.15 in
Horsepower @ Single Phase - 240V AC:
2 hp
Auxiliary Contact Module Capacity:
4
Overload Protection Type:
Electronic
NEMA Enclosure Rating:
1
Current AC:
18 A
Mounting Style:
Surface
Horsepower @ Three Phase - 480V AC:
5 hp
Hazardous Location Specification:
Not Applicable
Reversing Capability:
Non-Reversing
Maximum Overload Relay Current Setting:
5 A
Frequency:
50/60 Hz
Package Quantity:
1
