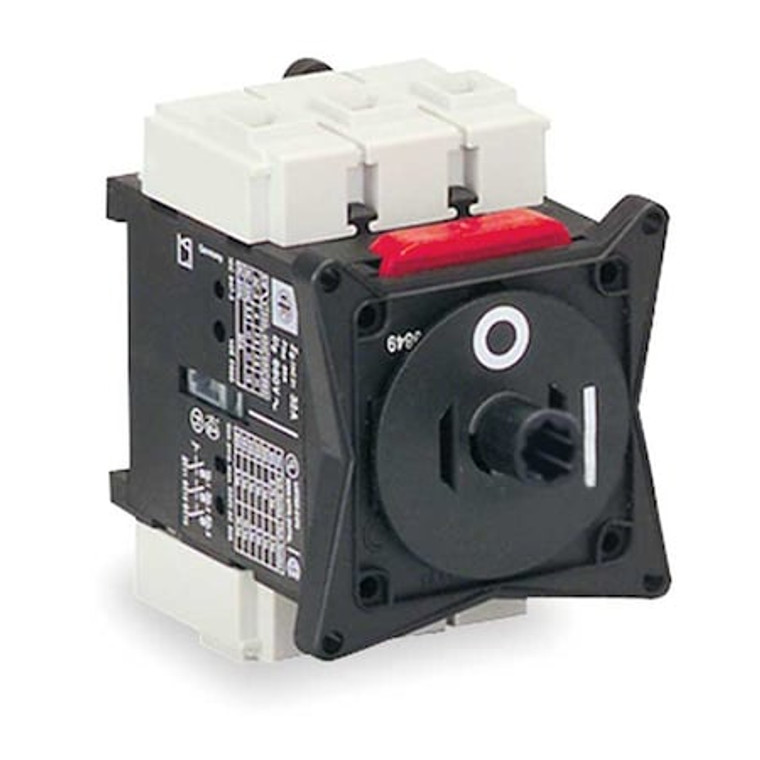

Nonfusible Load Break Switch, 600V AC - V5

Nonfusible Load Break Switch, 600V AC - V5

Square D
SKU:
V5
|
UPC:
785901301486
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Load Break Switch, Contact Form 3PST, Current Rating 125 A, Depth 3 1/2 in, Duty Standard, Enclosure Type Enclosed, Features Opening for 6 mm (0.24 in) Shaft Width, For Fuse Class Not Applicable, Height 5 in, Horsepower @ 240V AC 25 hp, Horsepower @ 480V AC 50 hp, Horsepower @ 600V AC 50 hp, Housing Material Non-Metallic, IP Rating IP20, Mounting Style DIN Rail, Neutral Assembly Included No, Number of Poles 3, Number of Wires 3, Phase Three, Protection Method Non-Fusible
Additional Information
Country of Origin:
Czechia
Item:
Load Break Switch
Protection Method:
Nonfusible
Duty:
General
Amps:
100 A
Voltage:
600V AC
Phase:
Three
HP:
25 hp @ 240V AC, 50 hp @ 480V AC, 50 hp @ 600V AC
IP Rating:
IP20
Material:
Non-Metallic
Number of Wires:
3
Number of Poles:
3
Contact Form:
3PST
Neutral Assembly Included:
No
Fusible / Nonfusible:
Nonfusible
Width:
3 1/2 in
Standards:
CCC, CSA Certified, EAC, IEC, Marine, UL Listed
Height:
5 in
Depth:
3 1/2 in
Enclosure Type:
Enclosed
Features:
Opening for 6 mm (0.24 in) Shaft Width
Housing Material:
Non-Metallic
Horsepower @ 600V AC:
50 hp
For Fuse Class:
Not Applicable
Resistance Properties:
Fire-Resistant
Horsepower @ 480V AC:
50 hp
Current Rating:
125 A
Mounting Style:
DIN Rail
Horsepower @ 240V AC:
25 hp
Poles Description:
3P
[Icw] Rated Short-Time Withstand Current:
1500 A 400 V 1 s
[Uimp] Rated Impulse Withstand Voltage:
8 kV
Product Name:
TeSys VARIO
Mechanical Robustness:
vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Network Frequency:
50/60 Hz
Fire Resistance:
960°C IEC 60695-2-1
Product Certifications:
UL || CSA || GL || UKCA
Performance Level:
high performance
Range:
TeSys
Intermittent Duty Class:
30
Ambient Air Temperature For Operation:
-20-50°C
Network Type:
AC || DC
Protective Treatment:
TC
Mounting Support:
symmetrical rail || plate
Connections - Terminals:
power circuit screw clamp terminals 70-70 mm² flexible - with cable end || power circuit screw clamp terminals 95-95 mm² solid
[Ie] Rated Operational Current:
68.5 A AC-23 Ue
Breaking Capacity:
1000 A 400 V AC-21A) || 1000 A 400 V AC-22A) || 1000 A 400 V AC-23A)
Contacts Type And Composition:
3 NO
Tightening Torque:
power circuit 22.6-22.6 N.m screw clamp terminals
Electrical Durability:
30000 cycles AC-21 || 30000 cycles DC-1...5
Suitability For Isolation:
yes
[Ith] Conventional Free Air Thermal Current:
125 A
Rated Conditional Short-Circuit Current:
10 kA 400 V 125 A aM || 10 kA 400 V 125 A gG
Mechanical Durability:
30000 cycles
Product Or Component Type:
switch body
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Device Short Name:
V
Rated Operational Power In W:
22 kW 230...240 V AC-3) || 30 kW 400...415 V AC-3) || 30 kW 690 V AC-3) || 37 kW 500 V AC-3) || 37 kW 690 V AC-23A) || 45 kW 500 V AC-23A) || 22 kW 230...240 V AC-23A) || 37 kW 400...415 V AC-23A)
Making Capacity:
1250 A 400 V AC-21A || 1250 A 400 V AC-22A || 1250 A 400 V AC-23A
[Icm] Rated Short-Circuit Making Capacity:
2.8 kA 400 V at Ipeak
[Ithe] Conventional Enclosed Thermal Current:
100 A
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz
Package Quantity:
1
