Non-Illuminated Push Button, 30 mm, 1NO/1NC, Yellow - 52PR8W4A

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Yellow - 52PR8W4A

Siemens
SKU:
52PR8W4A
|
UPC:
887621408916
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

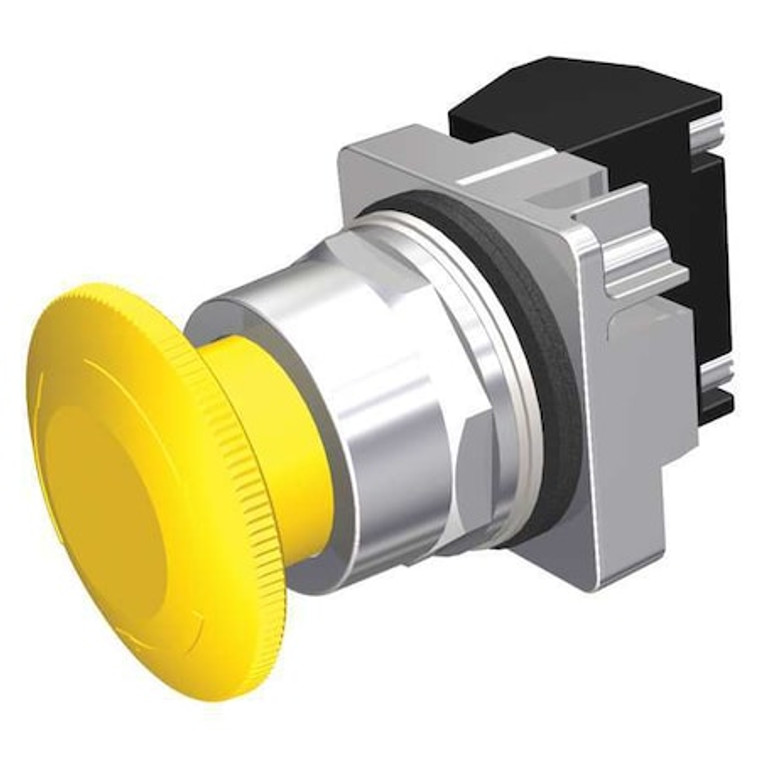

Mushroom Head Push Button, 30 mm, Maintained Action, 45mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Corrosive Resistant Chrome Plated Zinc Die Cast, Color Yellow, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Screw
Additional Information
Country of Origin:
Mexico
Action:
Maintained
Size:
30 mm
Head Material:
Plastic
NEMA Rating:
1, 12, 13, 3, 4, 4X
Type of Operator:
45mm Mushroom Head
Lamp Type:
Not Applicable
Color:
Yellow
Contact Form:
1NO/1NC
Legend:
Not Applicable
Bezel:
Corrosive Resistant Chrome Plated Zinc Die Cast
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Mushroom Head Push Button
Bezel Material:
Chrome
Terminal Connection:
Screw
NEMA Contact Rating Designation:
A600/P600
Standards:
CSA, REACH, UL Listed
Basic Material:
Metal
Material:
metal
IP Rating:
IP20, IP66
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Lamp Module Type:
Not Applicable
Series:
Class 52
DC Contact Rating:
Not Rated
AC Contact Rating:
10 A @ 600 V
Product Type:
Push Button Operators
Resistance Properties:
Oil and Grease Resistant, Watertight
Maintained Action Release:
Twist
Number of Indicator Lights:
0
Operator Voltage Rating - Maximum:
600 V AC
Operating Temperature - Minimum:
31 Degrees F
Head Color:
Yellow
Overall Height:
4.49 in
Lamp Voltage - Maximum:
Not Applicable
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Legend Background Color:
Not Applicable
Legend Color:
Not Applicable
Manufacturer Warranty Length:
1 yr
Operating Temperature - Maximum:
158 Degrees F
Overall Width:
2.12 in
Operator Material:
Metal
Mushroom Head Diameter:
45.47 mm
Mechanical Operating Durability:
3.00 x 10^5
Panel Cutout Diameter:
30 mm
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Operator Illumination:
Non-Illuminated
Push Button Style:
Mushroom Head
Package Quantity:
1
