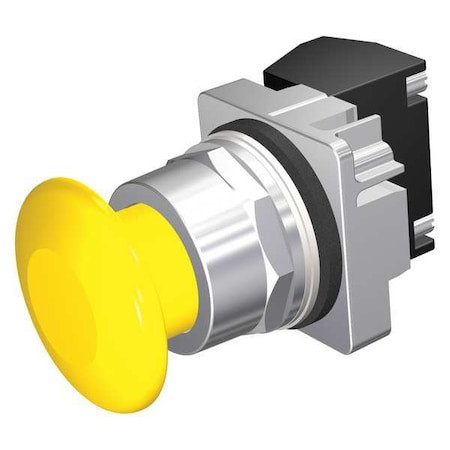

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Yellow - 52PM9W4A

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Yellow - 52PM9W4A

Siemens
SKU:
52PM9W4A
|
UPC:
887621436971
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Momentary Action, 44mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Yellow, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Item:
Mushroom Head Push Button
Contact Rating:
10A @ 600V AC
Size:
30 mm
Action:
Momentary
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Type of Operator:
44mm Mushroom Head
Lamp Type:
Not Applicable
Head Material:
Plastic
Contact Form:
1NO/1NC
Legend:
Not Applicable
Bezel:
Chrome Plated Zinc Die Cast
Number of Operators:
1
Color:
Yellow
Bezel Material:
Chrome
NEMA Contact Rating Designation:
A600/P600
Basic Material:
Metal
Material:
metal
Standards:
CSA, REACH, UL Listed
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Terminal Connection:
Pressure Plate
Lamp Module Type:
Not Applicable
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
AC Contact Rating:
10 A @ 600 V
DC Contact Rating:
Not Rated
Series:
Class 52
Product Type:
Push Button Operators
Operating Temperature - Maximum:
158 Degrees F
Overall Height:
4.49 in
Number of Indicator Lights:
0
Lamp Voltage - Maximum:
Not Applicable
Operator Material:
Metal
Resistance Properties:
Oil and Grease Resistant, Watertight
Legend Color:
Not Applicable
Operator Voltage Rating - Maximum:
600 V AC
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Manufacturer Warranty Length:
1 yr
Mushroom Head Diameter:
44.45 mm
Legend Background Color:
Not Applicable
Overall Width:
2.12 in
Maintained Action Release:
Not Applicable
Operating Temperature - Minimum:
31 Degrees F
Push Button Style:
Mushroom Head
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Mechanical Operating Durability:
5.00 x 10^6
Operator Illumination:
Non-Illuminated
Panel Cutout Diameter:
30 mm
Head Color:
Yellow
Package Quantity:
1
