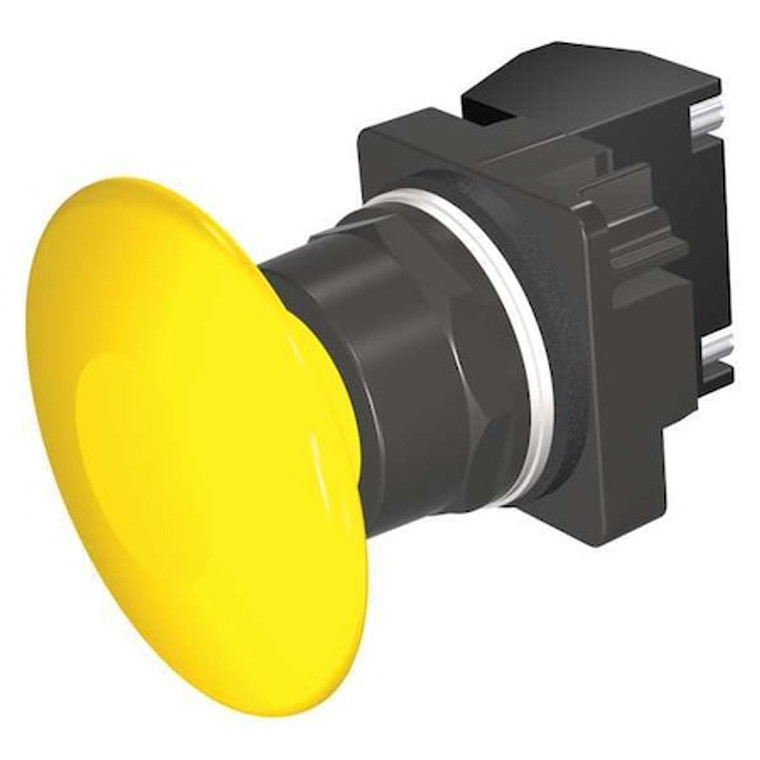

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Yellow - 52BM9V4A

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Yellow - 52BM9V4A

Siemens
SKU:
52BM9V4A
|
UPC:
887621576813
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Momentary Action, 63mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Epoxy Coated Zinc Die Cast, Color Yellow, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Momentary
Size:
30 mm
Head Material:
Plastic
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Type of Operator:
63mm Mushroom Head
Lamp Type:
Not Applicable
Color:
Yellow
Contact Form:
1NO/1NC
Legend:
Not Applicable
Bezel:
Epoxy Coated Zinc Die Cast
Number of Operators:
1
Item:
Mushroom Head Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Epoxy Coated Metal
Standards:
CSA, REACH, UL Listed
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Material:
metal
Basic Material:
Metal
Terminal Connection:
Pressure Plate
NEMA Contact Rating Designation:
A600/P600
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Series:
Class 52
AC Contact Rating:
10 A @ 600 V
Lamp Module Type:
Not Applicable
DC Contact Rating:
Not Rated
Product Type:
Push Button Operators
Head Color:
Yellow
Maintained Action Release:
Not Applicable
Overall Height:
4.49 in
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Resistance Properties:
Corrosion Resistant
Mechanical Operating Durability:
5.00 x 10^6
Push Button Style:
Mushroom Head
Operator Illumination:
Non-Illuminated
Number of Indicator Lights:
0
Operator Voltage Rating - Maximum:
600 V AC
Mushroom Head Diameter:
63.5 mm
Lamp Voltage - Maximum:
Not Applicable
Legend Background Color:
Not Applicable
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Overall Width:
2.12 in
Legend Color:
Not Applicable
Panel Cutout Diameter:
30 mm
Manufacturer Warranty Length:
1 yr
Operating Temperature - Maximum:
158 Degrees F
Operator Material:
Epoxy Coated Metal
Operating Temperature - Minimum:
31 Degrees F
Package Quantity:
1
