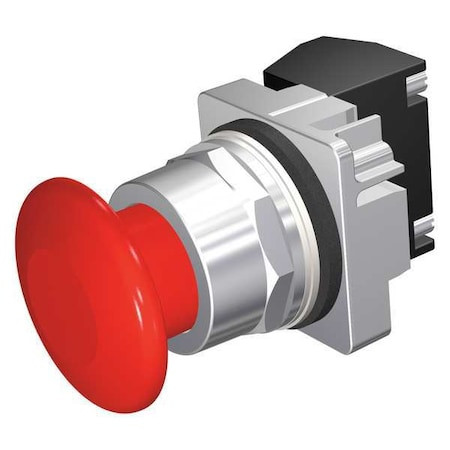

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Red - 52PM9W2A

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Red - 52PM9W2A

Siemens
SKU:
52PM9W2A
|
UPC:
887621437084
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Mushroom Head Push Button, 30 mm, Momentary Action, 44mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66, Legend Not Applicable, Standards CSA, REACH, UL Listed, Terminal Connection Pressure Plate
Additional Information
Country of Origin:
Mexico
Action:
Momentary
Size:
30 mm
Head Material:
Plastic
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Type of Operator:
44mm Mushroom Head
Lamp Type:
Not Applicable
Color:
Red
Contact Form:
1NO/1NC
Legend:
Not Applicable
Bezel:
Chrome Plated Zinc Die Cast
Number of Operators:
1
Item:
Mushroom Head Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Chrome
Terminal Connection:
Pressure Plate
NEMA Contact Rating Designation:
A600/P600
Basic Material:
Metal
IP Rating:
IP10, IP11, IP14, IP52, IP54, IP56, IP66
Standards:
CSA, REACH, UL Listed
Material:
metal
Lamp Module Type:
Not Applicable
DC Contact Rating:
Not Rated
Series:
Class 52
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
AC Contact Rating:
10 A @ 600 V
Product Type:
Push Button Operators
Legend Background Color:
Not Applicable
Panel Cutout Diameter:
30 mm
Overall Height:
4.49 in
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Legend Color:
Not Applicable
Mechanical Operating Durability:
5.00 x 10^6
Number of Indicator Lights:
0
Operator Voltage Rating - Maximum:
600 V AC
Mushroom Head Diameter:
44.45 mm
Operating Temperature - Maximum:
158 Degrees F
Lamp Voltage - Maximum:
Not Applicable
Operator Material:
Metal
Manufacturer Warranty Length:
1 yr
Push Button Style:
Mushroom Head
Resistance Properties:
Oil and Grease Resistant, Watertight
Head Color:
Red
Maintained Action Release:
Not Applicable
Operator Illumination:
Non-Illuminated
Operating Temperature - Minimum:
31 Degrees F
Overall Width:
2.12 in
Package Quantity:
1
