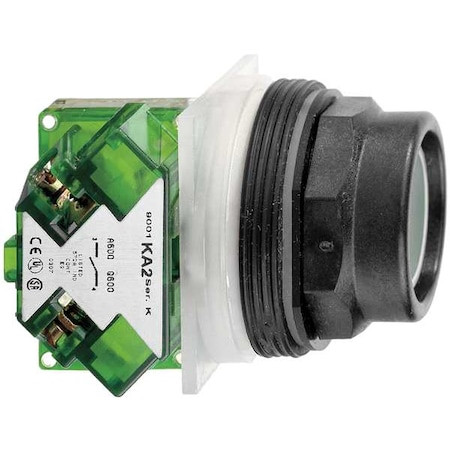

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Green - 9001SKR2GH13

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Green - 9001SKR2GH13

Schneider Electric
SKU:
9001SKR2GH13
|
UPC:
785901042600
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Extended Push Button Operator, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Plastic, Contact Form SPDT, Bezel Corrosion Resistant Thermoplastic, Color Green, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Additional Information
Country of Origin:
Mexico
Action:
Momentary
Size:
30 mm
Head Material:
Plastic
NEMA Rating:
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Type of Operator:
Extended Button
Lamp Type:
Not Applicable
Color:
Green
Contact Form:
SPDT
Legend:
Not Applicable
Bezel:
Corrosion Resistant Thermoplastic
Number of Operators:
1
Item:
Extended Push Button Operator
Contact Rating:
10A @ 600V AC
Bezel Material:
Plastic
Material:
Plastic
Standards:
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Basic Material:
Plastic
IP Rating:
IP66
Terminal Connection:
Screw Clamp
NEMA Contact Rating Designation:
A600/Q600
Lamp Module Type:
Not Applicable
Series:
9001SK
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type:
Push Button Operators
Ip Degree Of Protection:
IP66
Mechanical Durability:
5000000 cycles
Contacts Type And Composition:
1 C/O
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Cap/Operator Or Lens Colour:
green
Mounting Diameter:
30 mm
Operator Additional Information:
plastic guard
Device Short Name:
9001SK
Operator Profile:
green recessed, recessed
Contact Operation:
standard
Product Or Component Type:
push-button
Device Presentation:
complete product
Manufacturer Warranty Length:
18 mo
Operating Temperature - Minimum:
-22 Degrees F
Push Button Style:
Extended
Operating Temperature - Maximum:
140 Degrees F
Legend Color:
Not Applicable
Number of Indicator Lights:
0
Mechanical Operating Durability:
5.00 x 10^6
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operator Material:
Plastic
Operator Voltage Rating - Maximum:
600 V AC
Resistance Properties:
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Legend Background Color:
Not Applicable
Lamp Voltage - Maximum:
Not Applicable
Head Color:
Green
Operator Illumination:
Non-Illuminated
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Panel Cutout Diameter:
30 mm
Maintained Action Release:
Not Applicable
Mushroom Head Diameter:
Not Applicable
Package Quantity:
1
