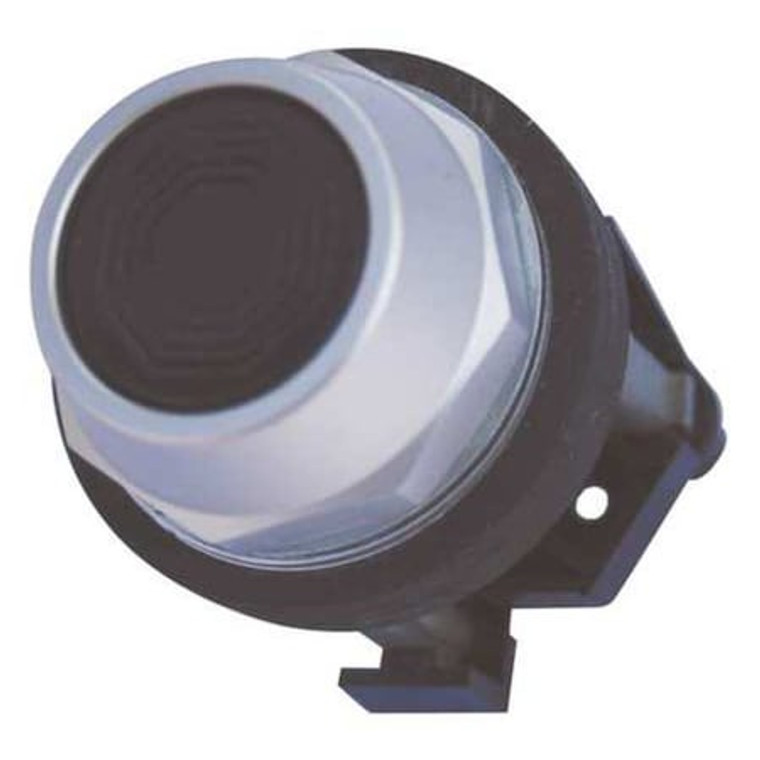

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Black - HT8AAHAB

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Black - HT8AAHAB

Eaton
SKU:
HT8AAHAB
|
UPC:
782113558110
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Flush Push Button Operator, 30 mm, Momentary Action, Flush Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Anodized Aluminum, Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, IP Rating IP66, Legend No Legend, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Allen-Bradley Pushbutton Panel Compatible, Material Metal
Additional Information
Country of Origin:
Dominican Republic
Action:
Momentary
Size:
30 mm
Head Material:
Metal
NEMA Rating:
1, 12, 13, 2, 3, 3R, 4, 4X
Type of Operator:
Flush Button
Lamp Type:
Not Applicable
Color:
Black
Contact Form:
1NO/1NC
Bezel:
Anodized Aluminum
Legend:
No Legend
Number of Operators:
1
Item:
Flush Push Button Operator
Contact Rating:
10A @ 600V AC
Bezel Material:
Chrome
IP Rating:
IP66
Standards:
CE, CSA, UL Listed
Terminal Connection:
Screw Clamp
Material:
metal
Basic Material:
Metal
NEMA Contact Rating Designation:
A600/P600
Features:
Allen-Bradley Pushbutton Panel Compatible
Lamp Module Type:
Not Applicable
DC Contact Rating:
5 A @ 250 V
AC Contact Rating:
10 A @ 600 V
Type:
30.5 mm, Watertight/Oiltight-HT800
Series:
HT800
Product Type:
Push Button Operators
Certifications:
UL Listed
Product Width:
2.1 in
Actuator Material:
Plastic
Degree of protection:
NEMA 3R
Actuator:
Flush
Illumination:
Non-illuminated
Compliances:
CE Marked
Mounting method:
Flush
Enclosure:
NEMA 1
Actuator Color:
Black
Product Height:
3.2 in
Operator material:
Plastic
Operating mode:
Momentary
Contact configuration:
1 NO-1 NC
Product Length/Depth:
2.4 in
Product Name:
Eaton HT800 pushbutton
Overall Depth:
2.4 in
Panel Cutout Diameter:
30 mm
Operating Temperature - Minimum:
10 Degrees F
Number of Indicator Lights:
0
Overall Width:
2.1 in
Operator Voltage Rating - Maximum:
28 V
Resistance Properties:
Oil and Grease Resistant, Watertight
Mechanical Operating Durability:
1.00 x 10^7
Push Button Style:
Flush
Overall Height:
3.2 in
NEMA Enclosure Rating:
1, 12, 2, 3, 3R, 4, 4X
Manufacturer Warranty Length:
1 yr
Operator Material:
Metal
Head Color:
Black
Operating Temperature - Maximum:
140 Degrees F
Lamp Voltage - Maximum:
Not Applicable
Mushroom Head Diameter:
Not Applicable
Operator Illumination:
Non-Illuminated
Package Quantity:
1
