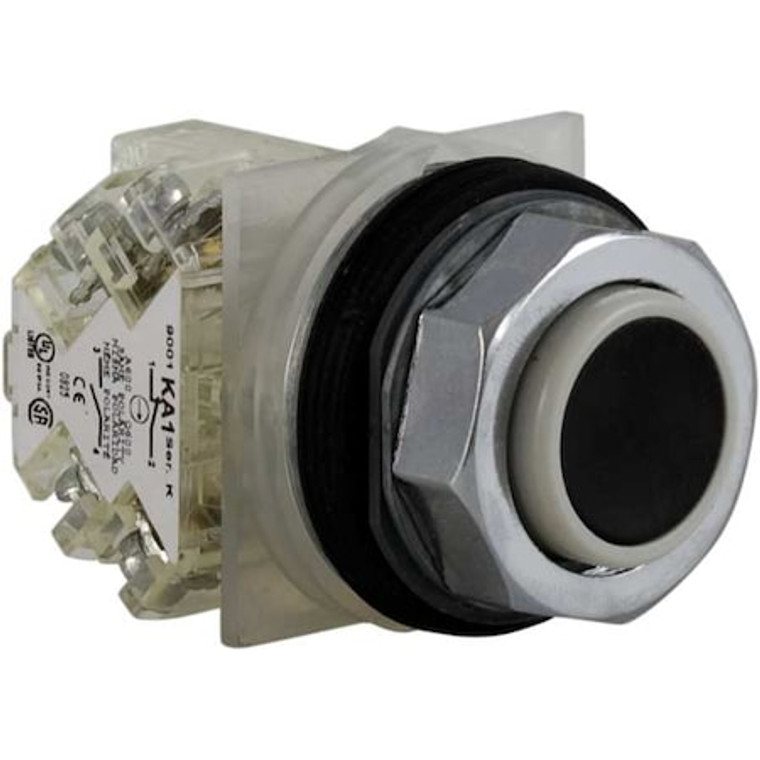

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Black - 9001KR3BH13

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Black - 9001KR3BH13

Schneider Electric
SKU:
9001KR3BH13
|
UPC:
785901851967
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Extended Push Button Operator, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Metal, Contact Form SPDT, Bezel Chrome Plated Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Legend Not Applicable, Standards CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE, Terminal Connection Screw Clamp, Material Metal
Additional Information
Country of Origin:
Mexico
Action:
Momentary
Size:
30 mm
Head Material:
Metal
NEMA Rating:
1, 12, 13, 2, 3, 3R, 4, 6
Type of Operator:
Extended Button
Lamp Type:
Not Applicable
Contact Form:
SPDT
Color:
Black
Legend:
Not Applicable
Bezel:
Chrome Plated Zinc Die Cast
Number of Operators:
1
Contact Rating:
10A @ 600V AC
Item:
Extended Push Button Operator
Bezel Material:
Metal
Terminal Connection:
Screw Clamp
Standards:
CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
IP Rating:
IP66
Basic Material:
Metal
Features:
Finger-Safe Terminals
NEMA Contact Rating Designation:
A600/Q600
Material:
metal
Lamp Module Type:
Not Applicable
Series:
9001K
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Product Type:
Push Button Operators
Device Presentation:
complete product
Light Block Supply:
without supply
Cap/Operator Or Lens Colour:
black
[Ie] Rated Operational Current:
10 A, AC-15 || 10 A, DC-13
Connections - Terminals:
screw clamp terminals
Light Source:
without
Operator Additional Information:
without guard
Mounting Diameter:
30 mm
Operating Position:
any position
Operator Profile:
projecting, black projecting
Contacts Type And Composition:
1 C/O
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
Device Short Name:
K
Contact Operation:
standard
Product Certifications:
CE || CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR
Product Or Component Type:
push-button
Rated Operational Current:
10 A, AC-15; 10 A, DC-13
Push Button Style:
Extended
Manufacturer Warranty Length:
18 mo
Legend Color:
Not Applicable
Maintained Action Release:
Not Applicable
Resistance Properties:
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Number of Indicator Lights:
0
Head Color:
Black
Operating Temperature - Maximum:
140 Degrees F
Lamp Voltage - Maximum:
Not Applicable
Operating Temperature - Minimum:
-22 Degrees F
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4, 6
Operator Voltage Rating - Maximum:
600 V AC
Legend Background Color:
Not Applicable
Operator Illumination:
Non-Illuminated
Mushroom Head Diameter:
Not Applicable
Operator Material:
Metal
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Panel Cutout Diameter:
30 mm
Package Quantity:
1
