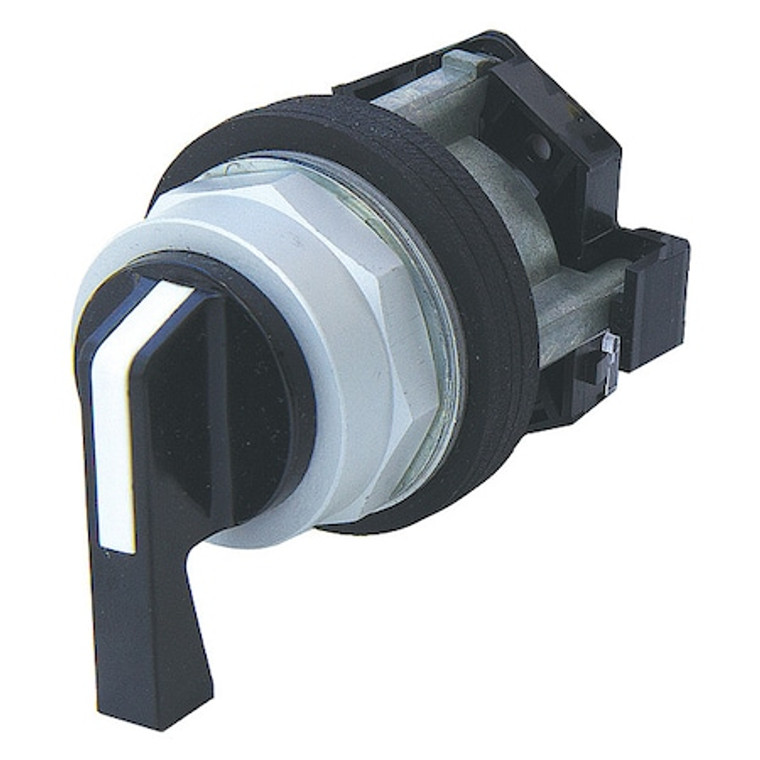

Non-Illum Selectr Swtch, 30mm, 4 Pos, Lever - HT8JFH8EF1Q1

Non-Illum Selectr Swtch, 30mm, 4 Pos, Lever - HT8JFH8EF1Q1

Eaton
SKU:
HT8JFH8EF1Q1
|
UPC:
782113728780
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Selector Switch, 30 mm, 4 Position, Maintained/Maintained/Maintained/Maintained Action, 1NC, 1NO Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polymer, Basic Material Metal, Bezel Material Chrome, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/P600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP68, Cam 8E, Switch Operation @ Position A XOOO, Switch Operation @ Position B OXOO
Additional Information
Country of Origin:
Dominican Republic
Item:
Selector Switch
Size:
30 mm
Basic Material:
Metal
Type of Operator:
Lever
Action:
Maintained/Maintained/Maintained/Maintained
Contact Form:
1NC, 1NO
Cam:
8E
Operator Head Material:
Polymer
Color:
Black
NEMA Rating:
1, 12, 13, 2, 3, 4, 4X
Bezel Material:
Chrome
Position:
4
Key Removal:
No Key
Bezel Color:
Chrome
Switch Operation @ Position C:
OOXO
Standards:
CSA, UL Listed
Switch Operation @ Position D:
OOOX
IP Rating:
IP68
NEMA Contact Rating Designation:
A600/P600
Switch Operation @ Position B:
OXOO
Switch Operation @ Position A:
XOOO
Includes:
Assembled Pushbutton
Contact Rating:
10A @ 600V AC
Lamp Type:
Not Applicable
Lamp Module Type:
Not Applicable
AC Contact Rating:
10 A @ 600 V
DC Contact Rating:
5 A @ 250 V
Series:
HT800
Illumination:
Non-illuminated
Cam code:
Cam 8E
Contact configuration:
Left
Enclosure:
NEMA 12
Actuator function:
Maintained
Product Length/Depth:
3 in
Bezel:
Chrome
Product Height:
5 in
Operating mode:
Maintained, maintained, maintained, maintained
Product Width:
2 in
Type:
30.5 mm, Watertight/Oiltight-HT800
Actuator:
Lever
Actuator color:
Black
Certifications:
UL Listed
Product Name:
Eaton HT800 pushbutton
Hazardous Location Specification:
Not Rated
Contact Block Material:
Metal
Switch Function @ 3rd Position:
On
Lamp Voltage - Maximum:
Not Applicable
Panel Cutout Diameter:
30 mm
NEMA Enclosure Rating:
12, 13, 3, 3R, 4, 4X
Operator Illumination:
Non-Illuminated
Operator Head Type:
Long-Handled Knob
Key Removal Position:
Not Applicable
Overall Depth:
3 in
Metal Operator Head Finish:
Not Applicable
Switch Function @ 1st Position:
On
Manufacturer Warranty Length:
1 yr
Includes Operator Key:
Not Applicable
Switch Function @ 2nd Position:
On
Overall Height:
5 in
Operator Head Color:
Black
Switch Function @ 4th Position:
On
Overall Width:
2 in
Package Quantity:
1
