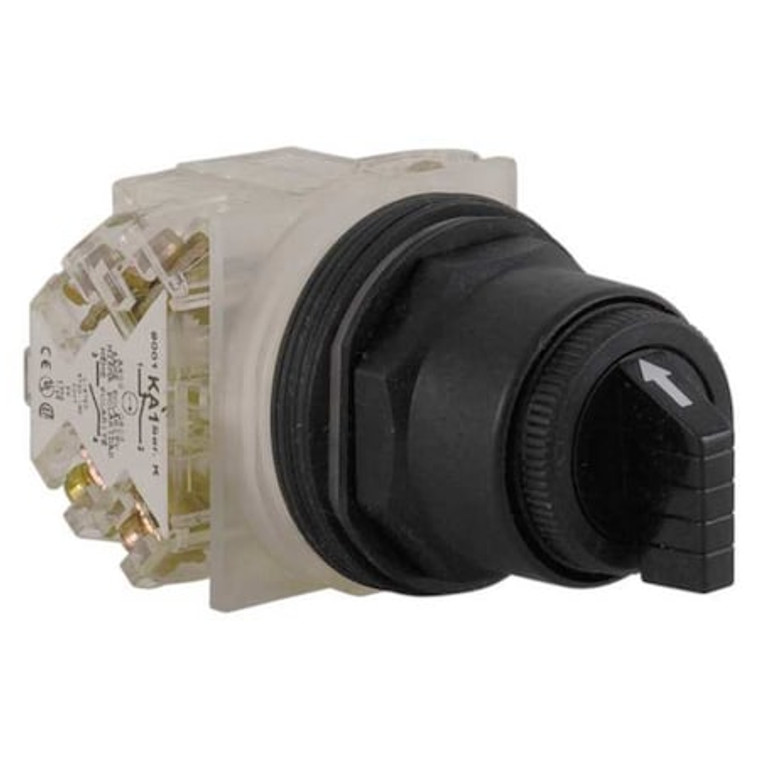

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever - 9001SKS42BH2

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever - 9001SKS42BH2

Schneider Electric
SKU:
9001SKS42BH2
|
UPC:
785901043706
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, DPDT Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Plastic, Bezel Material Plastic, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP66, Cam B, Switch Operation @ Position A XOOX, Switch Operation @ Position B XOXO, Switch Operation @ Position C OXXO
Additional Information
Country of Origin:
Mexico
Item:
Selector Switch
Size:
30 mm
Basic Material:
Plastic
Type of Operator:
Lever
Action:
Maintained/Maintained/Maintained
Contact Form:
DPDT
Operator Head Material:
Polycarbonate
Cam:
B
Color:
Black
NEMA Rating:
12, 13, 3, 3R, 4, 4X
Position:
3
Bezel Material:
Plastic
Key Removal:
No Key
Bezel Color:
Chrome
Contact Rating:
10A @ 600V AC
Switch Operation @ Position D:
No Fourth Position
NEMA Contact Rating Designation:
A600/Q600
Switch Operation @ Position B:
XOXO
IP Rating:
IP66
Standards:
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Switch Operation @ Position C:
OXXO
Switch Operation @ Position A:
XOOX
Lamp Module Type:
Not Applicable
Lamp Type:
Not Applicable
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
Series:
9001K
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Mounting Diameter:
30 mm
Ambient Air Temperature For Storage:
-40-70°C
Contacts Type And Composition:
2 C/O
Product Or Component Type:
selector switch
Protective Treatment:
TC
Ambient Air Temperature For Operation:
-25-70°C
Electrical Shock Protection Class:
class II IEC 61140
Device Presentation:
complete product
Device Short Name:
9001SK
Operator Position Information:
3 positions
Ip Degree Of Protection:
IP66 IEC 60529
Product Certifications:
UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
Switch Function @ 4th Position:
No Fourth Position
Key Removal Position:
Not Applicable
Lamp Voltage - Maximum:
Not Applicable
Contact Block Material:
Plastic
Hazardous Location Specification:
Not Rated
Metal Operator Head Finish:
Not Applicable
Number of Positions:
3
Switch Function @ 1st Position:
On
Operator Illumination:
Non-Illuminated
Manufacturer Warranty Length:
18 mo
Operator Head Color:
Black
Operator Head Type:
Short-Handled Knob
Includes Operator Key:
Not Applicable
Panel Cutout Diameter:
30 mm
Switch Function @ 2nd Position:
Off
Switch Function @ 3rd Position:
On
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4, 4X
Package Quantity:
1
