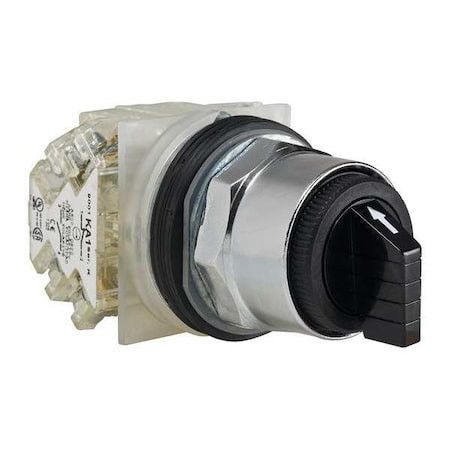

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever - 9001KS53BH2

Non-Illum Selectr Swtch, 30mm, 3 Pos, Lever - 9001KS53BH2

Schneider Electric
SKU:
9001KS53BH2
|
UPC:
785901856481
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Selector Switch, 30 mm, 3 Position, Momentary/Maintained/Momentary Action, DPDT Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP65, Cam C, Switch Operation @ Position A OXOX, Switch Operation @ Position B OOOO, Switch Operation @ Position C XOXO
Additional Information
Country of Origin:
Mexico
Item:
Selector Switch
Size:
30 mm
Basic Material:
Metal
Type of Operator:
Lever
Contact Form:
DPDT
Action:
Momentary/Maintained/Momentary
Operator Head Material:
Polycarbonate
Cam:
C
Color:
Black
NEMA Rating:
12, 13, 3, 3R, 4
Bezel Material:
Metal
Position:
3
Bezel Color:
Chrome
Key Removal:
No Key
Standards:
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Contact Rating:
10A @ 600V AC
Switch Operation @ Position B:
OOOO
Switch Operation @ Position D:
No Fourth Position
Switch Operation @ Position A:
OXOX
NEMA Contact Rating Designation:
A600/Q600
IP Rating:
IP65
Switch Operation @ Position C:
XOXO
Lamp Type:
Not Applicable
Lamp Module Type:
Not Applicable
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series:
9001K
Mounting Diameter:
30 mm
Contacts Type And Composition:
2 C/O
Cap/Operator Or Lens Colour:
black
Operator Profile:
standard handle, black standard knob
Connections - Terminals:
screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Product Or Component Type:
selector switch
Return:
both sides to centre
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
Device Short Name:
K
Device Presentation:
complete product
Cam Profile:
3
Product Certifications:
CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
Operator Position Information:
3 positions
Includes Operator Key:
Not Applicable
Contact Block Material:
Metal
Number of Positions:
3
Metal Operator Head Finish:
Not Applicable
Hazardous Location Specification:
Not Rated
Key Removal Position:
Not Applicable
Panel Cutout Diameter:
30 mm
Switch Function @ 3rd Position:
Momentary
Operator Illumination:
Non-Illuminated
Lamp Voltage - Maximum:
Not Applicable
Switch Function @ 4th Position:
No Fourth Position
Switch Function @ 2nd Position:
Off
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4
Switch Function @ 1st Position:
Momentary
Operator Head Type:
Short-Handled Knob
Operator Head Color:
Black
Manufacturer Warranty Length:
18 mo
Package Quantity:
1
