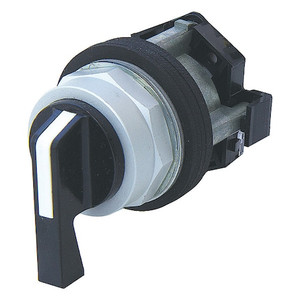

Non-Illum Selectr Swtch, 30mm, 2 Pos, Lever - 9001KS34BH13

Non-Illum Selectr Swtch, 30mm, 2 Pos, Lever - 9001KS34BH13

Schneider Electric
SKU:
9001KS34BH13
|
UPC:
785901861560
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Selector Switch, 30 mm, 2 Position, Maintained/Momentary Action, SPDT Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polycarbonate, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 3, 3R, 4, IP Rating IP66, Cam D, Switch Operation @ Position A XO, Switch Operation @ Position B OX, Switch Operation @ Position C No Third Position
Additional Information
Country of Origin:
Mexico
Item:
Selector Switch
Size:
30 mm
Basic Material:
Metal
Type of Operator:
Lever
Contact Form:
SPDT
Action:
Maintained/Momentary
Operator Head Material:
Polycarbonate
Cam:
D
Color:
Black
NEMA Rating:
12, 13, 3, 3R, 4
Bezel Material:
Metal
Position:
2
Bezel Color:
Chrome
Key Removal:
No Key
Switch Operation @ Position B:
OX
Standards:
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Contact Rating:
10A @ 600V AC
IP Rating:
IP66
Switch Operation @ Position D:
No Fourth Position
NEMA Contact Rating Designation:
A600/Q600
Switch Operation @ Position A:
XO
Switch Operation @ Position C:
No Third Position
Lamp Type:
Not Applicable
Lamp Module Type:
Not Applicable
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @125 V
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Series:
9001K
Product Compatibility:
9001KA1 side 2
Mounting Diameter:
30 mm
Device Short Name:
K
Contacts Type And Composition:
1 C/O
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
Operator Profile:
black standard knob, standard handle
Product Or Component Type:
selector switch
Product Certifications:
UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
Connections - Terminals:
screw-clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1
Device Presentation:
complete product
Operator Position Information:
2 positions
Return:
right to left
Cam Profile:
4
Cap/Operator Or Lens Colour:
black
Manufacturer Warranty Length:
18 mo
Switch Function @ 1st Position:
Off
Key Removal Position:
Not Applicable
Switch Function @ 3rd Position:
No Third Position
Hazardous Location Specification:
Not Rated
Number of Positions:
2
Operator Illumination:
Non-Illuminated
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4
Metal Operator Head Finish:
Not Applicable
Switch Function @ 4th Position:
No Fourth Position
Operator Head Color:
Black
Lamp Voltage - Maximum:
Not Applicable
Includes Operator Key:
Not Applicable
Contact Block Material:
Metal
Switch Function @ 2nd Position:
Momentary
Panel Cutout Diameter:
30 mm
Operator Head Type:
Short-Handled Knob
Package Quantity:
1
