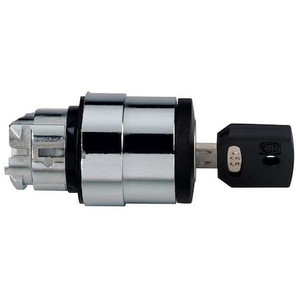

Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd - ZB4BG620

Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd - ZB4BG620

Schneider Electric
SKU:
ZB4BG620
|
UPC:
785901933892
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Keyed Selector Switch, 22 mm, 2 Position, Maintained/Momentary Action, Keyed Type of Operator, Operator Color Black, Key Removal Left, Operator Head Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508, Key Number 3131A, Includes Key
Additional Information
Country of Origin:
France
Action:
Maintained/Momentary
Size:
22 mm
Basic Material:
Metal
NEMA Rating:
1, 12, 13, 2, 3, 4, 4X
Type of Operator:
Keyed
Cam:
No Cam Included
Operator Head Material:
Metal
Color:
Black
Operator Color:
Black
Item:
Keyed Selector Switch
Position:
2
Bezel Color:
Chrome
Bezel Material:
Chrome Plated Metal
Key Removal:
Left
Key Number:
3131A
IP Rating:
IP66, IP67, IP69, IP69K
Includes:
Key
Switch Operation @ Position A:
OX
Switch Operation @ Position B:
XO
Switch Operation @ Position D:
No Fourth Position
Standards:
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508
Switch Operation @ Position C:
No Third Position
Series:
XB4
Operator Profile:
black key switch
Head Type:
standard
Shape Of Signaling Unit Head:
round
Mechanical Durability:
1000000 cycles
Product Certifications:
UL Listed || GL || CSA || DNV || BV || LROS (Lloyds register of shipping)
Return:
right to left
Key Withdrawal Position:
left
Overvoltage Category:
class I IEC 60536
Device Presentation:
basic element
Electrical Composition Code:
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name:
ZB4
Cad Overall Height:
29 mm
Ambient Air Temperature For Storage:
-40-70°C
Cad Overall Depth:
72 mm
Product Or Component Type:
head for key selector switch
Mounting Diameter:
22 mm
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Operator Position Information:
2 positions 90°
Type Of Keylock:
key 3131A
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Cad Overall Width:
29 mm
Resistance To High Pressure Washer:
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Operation:
-40-70°C
Protective Treatment:
TH
Switch Function @ 1st Position:
Not Applicable
Operator Head Color:
Black
Manufacturer Warranty Length:
18 mo
Switch Function @ 4th Position:
No Fourth Position
Panel Cutout Diameter:
22 mm
Key Removal Position:
Left
Operator Head Type:
Keyed
Switch Function @ 3rd Position:
No Third Position
Includes Operator Key:
Key Included
Operator Illumination:
Non-Illuminated
Number of Positions:
2
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 4, 4X
Hazardous Location Specification:
Not Rated
Switch Function @ 2nd Position:
Not Applicable
Package Quantity:
1
