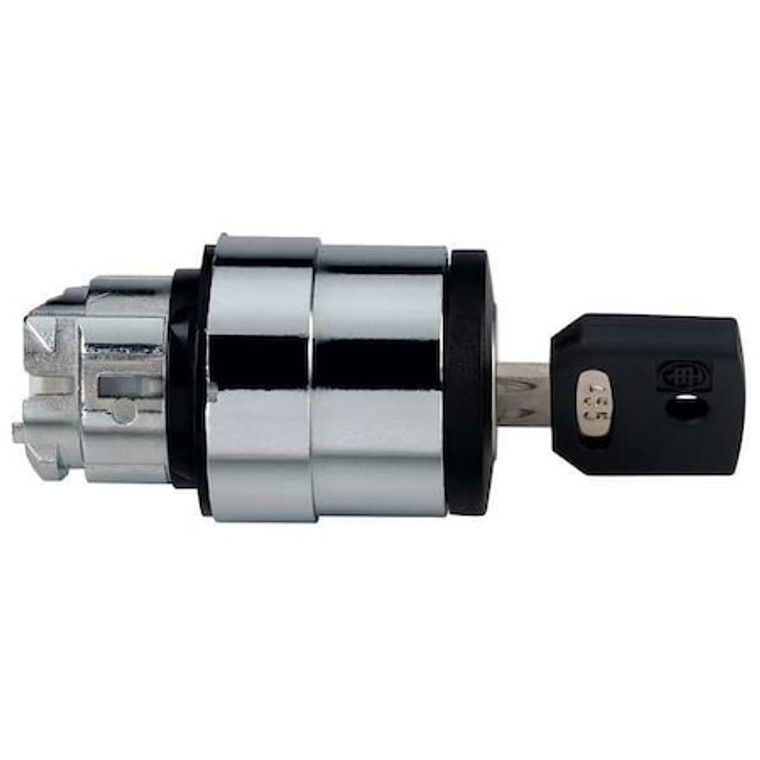

Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd - ZB4BG614

Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd - ZB4BG614

Schneider Electric
SKU:
ZB4BG614
|
UPC:
785901523390
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Keyed Selector Switch, 22 mm, 2 Position, Maintained/Momentary Action, Keyed Type of Operator, Operator Color Black, Key Removal Left, Operator Head Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508, Key Number 520E, Includes Key
Additional Information
Country of Origin:
France
Action:
Maintained/Momentary
Size:
22 mm
Basic Material:
Metal
NEMA Rating:
1, 12, 13, 2, 3, 4, 4X
Type of Operator:
Keyed
Cam:
No Cam Included
Operator Head Material:
Metal
Color:
Black
Operator Color:
Black
Item:
Keyed Selector Switch
Position:
2
Key Removal:
Left
Bezel Material:
Chrome Plated Metal
Bezel Color:
Chrome
Key Number:
520E
Switch Operation @ Position A:
OX
IP Rating:
IP66, IP67, IP69, IP69K
Includes:
Key
Switch Operation @ Position C:
No Third Position
Standards:
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508
Switch Operation @ Position D:
No Fourth Position
Switch Operation @ Position B:
XO
Series:
XB4
Protective Treatment:
TH
Operator Position Information:
2 positions 90°
Cad Overall Height:
29 mm
Overvoltage Category:
class I IEC 60536
Cad Overall Depth:
72 mm
Type Of Keylock:
key 520E
Ambient Air Temperature For Operation:
-40-70°C
Product Certifications:
LROS (Lloyds register of shipping) || CSA || DNV || UL Listed || BV || GL
Device Short Name:
ZB4
Head Type:
standard
Resistance To High Pressure Washer:
7000000 Pa 55°C 0.1 m
Shape Of Signaling Unit Head:
round
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Storage:
-40-70°C
Mounting Diameter:
22 mm
Electrical Composition Code:
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Device Presentation:
basic element
Cad Overall Width:
29 mm
Mechanical Durability:
1000000 cycles
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Key Withdrawal Position:
left
Operator Profile:
black key switch
Product Or Component Type:
head for key selector switch
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Return:
right to left
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 4, 4X
Manufacturer Warranty Length:
18 mo
Switch Function @ 1st Position:
Not Applicable
Operator Head Color:
Black
Switch Function @ 2nd Position:
Not Applicable
Operator Head Type:
Keyed
Overall Depth:
2.83 in
Operator Illumination:
Non-Illuminated
Overall Width:
1.14 in
Panel Cutout Diameter:
22 mm
Key Removal Position:
Left
Switch Function @ 3rd Position:
No Third Position
Switch Function @ 4th Position:
No Fourth Position
Overall Height:
1.14 in
Hazardous Location Specification:
Not Rated
Includes Operator Key:
Key Included
Number of Positions:
2
Package Quantity:
1
