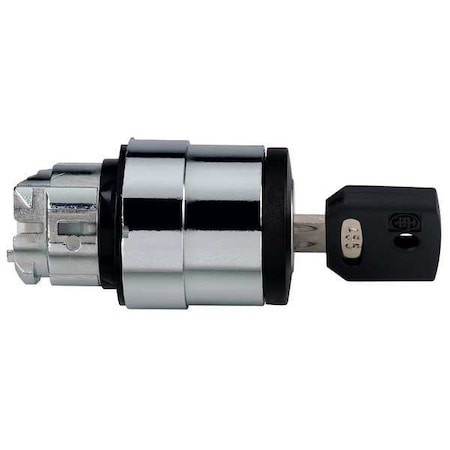

Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd - ZB4BG420

Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd - ZB4BG420

Schneider Electric
SKU:
ZB4BG420
|
UPC:
785901855668
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Keyed Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, Keyed Type of Operator, Operator Color Black, Key Removal Left and Right, Operator Head Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508, Key Number 3131A, Includes Key
Additional Information
Country of Origin:
France
Action:
Maintained/Maintained
Size:
22 mm
Basic Material:
Metal
NEMA Rating:
1, 12, 13, 2, 3, 4, 4X
Type of Operator:
Keyed
Cam:
No Cam Included
Operator Head Material:
Metal
Color:
Black
Operator Color:
Black
Item:
Keyed Selector Switch
Position:
2
Bezel Color:
Chrome
Bezel Material:
Chrome Plated Metal
Key Removal:
Left and Right
Switch Operation @ Position B:
XO
Switch Operation @ Position A:
OX
IP Rating:
IP66, IP67, IP69, IP69K
Standards:
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508
Key Number:
3131A
Switch Operation @ Position D:
No Fourth Position
Switch Operation @ Position C:
No Third Position
Includes:
Key
Series:
XB4
Device Presentation:
basic element
Ambient Air Temperature For Storage:
-40-70°C
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Type Of Keylock:
key 3131A
Key Withdrawal Position:
in any position
Product Certifications:
GL || DNV || LROS (Lloyds register of shipping) || CSA || UL Listed || BV
Protective Treatment:
TH
Cad Overall Depth:
72 mm
Overvoltage Category:
class I IEC 60536
Mechanical Durability:
1000000 cycles
Operator Position Information:
2 positions 90°
Ambient Air Temperature For Operation:
-40-70°C
Electrical Composition Code:
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
Cad Overall Height:
29 mm
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Cad Overall Width:
29 mm
Product Or Component Type:
head for key selector switch
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Mounting Diameter:
22 mm
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Resistance To High Pressure Washer:
7000000 Pa 55°C 0.1 m
Shape Of Signaling Unit Head:
round
Operator Profile:
black key switch
Head Type:
standard
Device Short Name:
ZB4
Number of Positions:
2
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 4, 4X
Operator Head Type:
Keyed
Hazardous Location Specification:
Not Rated
Operator Head Color:
Black
Switch Function @ 4th Position:
No Fourth Position
Switch Function @ 1st Position:
Not Applicable
Switch Function @ 2nd Position:
Not Applicable
Includes Operator Key:
Key Included
Manufacturer Warranty Length:
18 mo
Switch Function @ 3rd Position:
No Third Position
Panel Cutout Diameter:
22 mm
Key Removal Position:
Any Position
Operator Illumination:
Non-Illuminated
Package Quantity:
1
