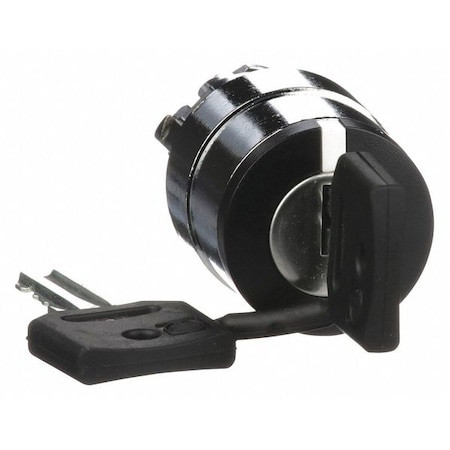

Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd - ZB4BG4

Non-Illum Selector Swtch, 22mm, 2 Pos, Keyd - ZB4BG4

Schneider Electric
SKU:
ZB4BG4
|
UPC:
785901354680
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Keyed Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, Keyed Type of Operator, Operator Color Black, Key Removal Left and Right, Operator Head Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508, Key Number 455, Includes Key
Additional Information
Country of Origin:
France
Item:
Keyed Selector Switch
Size:
22 mm
Basic Material:
Metal
Type of Operator:
Keyed
Action:
Maintained/Maintained
Operator Head Material:
Metal
Cam:
No Cam Included
Operator Color:
Black
Color:
Black
NEMA Rating:
1, 12, 13, 2, 3, 4, 4X
Bezel Material:
Chrome Plated Metal
Position:
2
Bezel Color:
Chrome
Key Removal:
Left and Right
Switch Operation @ Position C:
No Third Position
IP Rating:
IP66, IP67, IP69, IP69K
Standards:
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GB 14048.5, UL 508
Includes:
Key
Key Number:
455
Switch Operation @ Position B:
XO
Switch Operation @ Position D:
No Fourth Position
Switch Operation @ Position A:
OX
Series:
XB4
Overvoltage Category:
class I IEC 60536
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Operation:
-40-70°C
Cad Overall Depth:
72 mm
Type Of Keylock:
key 455
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer:
7000000 Pa 55°C 0.1 m
Head Type:
standard
Product Or Component Type:
head for key selector switch
Cad Overall Height:
29 mm
Ik Degree Of Protection:
IK06 with keyhole cover ZBGP conforming to IEC 50102
Shape Of Signaling Unit Head:
round
Protective Treatment:
TH
Electrical Composition Code:
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Product Certifications:
GL || UL Listed || LROS (Lloyds register of shipping) || CSA || DNV || BV
Key Withdrawal Position:
in any position
Cad Overall Width:
29 mm
Operator Position Information:
2 positions 90°
Mechanical Durability:
1000000 cycles
Ambient Air Temperature For Storage:
-40-70°C
Device Presentation:
basic element
Mounting Diameter:
22 mm
Operator Profile:
black key switch
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Device Short Name:
ZB4
Switch Function @ 3rd Position:
No Third Position
Switch Function @ 1st Position:
Not Applicable
Switch Function @ 2nd Position:
Not Applicable
Operator Head Color:
Black
Panel Cutout Diameter:
22 mm
Manufacturer Warranty Length:
18 mo
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 4, 4X
Operator Illumination:
Non-Illuminated
Number of Positions:
2
Operator Head Type:
Keyed
Switch Function @ 4th Position:
No Fourth Position
Hazardous Location Specification:
Not Rated
Includes Operator Key:
Key Included
Key Removal Position:
Any Position
Package Quantity:
1
