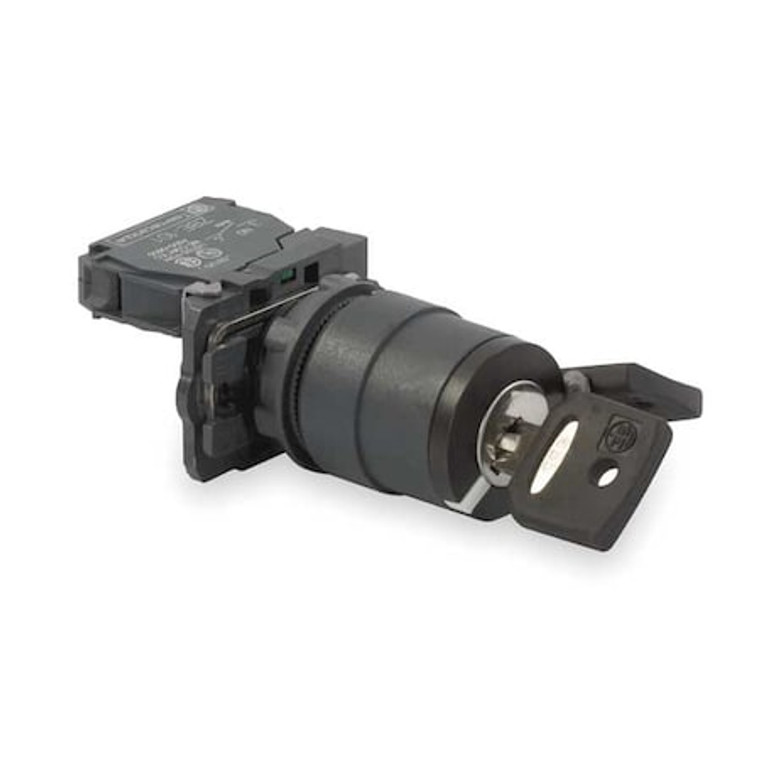

Non-Illum Selector Switch, 1NO, SS, 22mm - XB5AG21

Non-Illum Selector Switch, 1NO, SS, 22mm - XB5AG21

Schneider Electric
SKU:
XB5AG21
|
UPC:
785901383697
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, 1NO Contact Form, Type of Operator Keyed, Color Chrome, Left Key Removal, Operator Head Material Metal, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation B600/Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Switch Operation @ Position A O, Switch Operation @ Position B X
Additional Information
Country of Origin:
France
Item:
Selector Switch
Size:
22 mm
Basic Material:
Plastic
Type of Operator:
Keyed
Action:
Maintained/Maintained
Contact Form:
1NO
Operator Head Material:
Metal
Cam:
No Cam Included
Color:
Chrome
NEMA Rating:
1, 12, 13, 2, 3, 4, 4X
Position:
2
Bezel Material:
Plastic
Bezel Color:
Black
Key Removal:
Left
Switch Operation @ Position B:
X
Switch Operation @ Position D:
No Fourth Position
IP Rating:
IP66, IP67, IP69, IP69K
Switch Operation @ Position C:
No Third Position
Standards:
BV, CSA, DNV, GL, LROS, UL Listed
Contact Rating:
10A @ 600V AC
NEMA Contact Rating Designation:
B600/Q600
Includes:
Key
Switch Operation @ Position A:
O
Lamp Type:
Not Applicable
Lamp Module Type:
Not Applicable
AC Contact Rating:
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Series:
XB5
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Width:
30 mm
Depth:
96 mm
Height:
42 mm
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Material:
silver alloy (Ag/Ni)
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Mounting Diameter:
22 mm
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
Electrical Shock Protection Class:
class II IEC 60536
Ik Degree Of Protection:
IK06 IEC 50102
Device Short Name:
XB5
Key Withdrawal Position:
left-hand
Mechanical Durability:
1000000 cycles
[Ui] Rated Insulation Voltage:
600 V 3)EN 60947-1
Positive Opening:
without
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Type Of Keylock:
key 455
Ip Degree Of Protection:
IP69 || IP69K || IP66 IEC 60529 || IP67
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
Contacts Type And Composition:
1 NO
Operator Position Information:
2 positions 90°
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN 60947-1
Operator Profile:
key switch
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ambient Air Temperature For Storage:
-40-70°C
Protective Treatment:
TH
Terminals Description Iso N°1:
(13-14)NO
Contact Operation:
slow-break
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Torque Value:
0.14 N.m NO changing electrical state
Product Or Component Type:
selector switch
Ambient Air Temperature For Operation:
-40-70°C
Head Type:
standard
Shape Of Signaling Unit Head:
round
Contacts Usage:
standard contacts
Device Presentation:
complete product
Resistance To High Pressure Washer:
7000000 Pa 55°C 0.1 m
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Tightening Torque:
0.8-1.2 N.m EN 60947-1
Product Certifications:
LROS (Lloyds register of shipping) || CSA || DNV || GL || BV || UL
Terminals Description Iso N°1:
(13-14)NO
Includes Operator Key:
Key Included
Overall Height:
1.65 in
Switch Function @ 4th Position:
No Fourth Position
Lamp Voltage - Maximum:
Not Applicable
Operator Illumination:
Non-Illuminated
Number of Positions:
2
Manufacturer Warranty Length:
18 mo
Key Removal Position:
Left
NEMA Enclosure Rating:
1, 12, 13, 2, 3, 3R, 4, 4X
Overall Depth:
3.78 in
Panel Cutout Diameter:
22 mm
Switch Function @ 1st Position:
Off
Contact Block Material:
Plastic
Switch Function @ 2nd Position:
On
Overall Width:
1.18 in
Operator Head Type:
Keyed
Hazardous Location Specification:
Not Rated
Operator Head Color:
Black
Switch Function @ 3rd Position:
No Third Position
Package Quantity:
1
