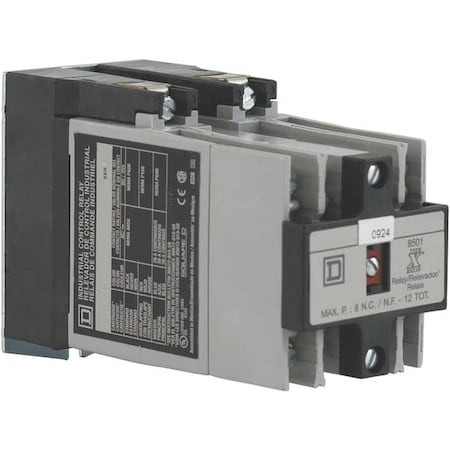

NEMA Control Relay6NO120VAC10A - 8501XO60V02

NEMA Control Relay6NO120VAC10A - 8501XO60V02

Square D
SKU:
8501XO60V02
|
UPC:
785901536789
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
NEMA Control Relay, Current Rating 10 A, Contact Form 6NO, Contact Rating (DC) 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V, Coil Voltage 110/120V AC, Contact Rating (AC) 10 A @ 600V, Relay Style NEMA, Electrical Connection Screw Clamp, Mounting Style Surface, Power Consumption 23 VA, Compatible with Series 8501 Type X Latching Control Relays, Maximum Operating Temperature 160 Degrees F, Frequency 50/60 Hz, Body Depth 5.16 in, Body Height 3.5 in, Body Width 2.23 in
Additional Information
Country of Origin:
Mexico
Item:
NEMA Control Relay
Coil Volts:
120V AC
Hz:
50/60
Contact Amp Rating (Resistive):
10A
Power Consumption - Relay:
23.0 VA
DC Contact Rating - Relay:
5A @ 125/250V
Standards:
CSA Certified, RoHS Compliant, UL Listed
AC Contact Rating - Relay:
10A @ 120/240/480/600V
Accessory Group:
B
Hz - Electrical:
50 Hz, 60 Hz
Body Depth - Relay:
5.16 in
Item - Relay:
NEMA Style Control Relay
Mounting:
Panel
Number of Pins - Relay:
14
Contact Form:
6NO
Contact Material:
Silver Cadmium Oxide
Response Time:
15 msec (Pick-Up Time), 16 msec (Drop-Out Time)
Body Height - Relay:
3.5 in
Features:
Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
Body Width - Relay:
2.23 in
Overall Height - Relay:
3.5 in
Mounting - Relay:
Surface
Contact Form - Relay:
(6) SPST-NO
Awg Gauge:
AWG 18 to AWG 12 copper
Product Or Component Type:
relay
Relay Type:
control
Tightening Torque:
control circuit 1.02-1.36 N.m screw terminals
[Uc] Control Circuit Voltage:
110 V AC 50 Hz || 120 V AC 60 Hz
Operating Time:
15 ms - pick-up || 16 ms - drop-out
Contacts Type And Composition:
6 NO 6 standard contact cartridges
Mounting Support:
panel
Control Circuit Voltage Limits:
operational 0.85 to 1.1 Uc AC 50/60 Hz
Inrush Power In Va:
148-148 VA 60 Hz || 143-143 VA 50 Hz
Ambient Air Temperature For Operation:
-40-160 °F
Width:
2.23 in
Hold-In Power Consumption In Va:
23-23 VA 60 Hz || 25-25 VA 50 Hz
Electrical Connection:
Screw Clamp
[Icm] Rated Short-Circuit Making Capacity:
60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 ||
Product Certifications:
CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR
Rated Breaking Capacity:
6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 ||
Height:
3.5 in
Line Rated Current:
10 A AC || 5 A DC
Depth:
5.16 in
Contact Rating (DC):
0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V
Body Depth:
5.16 in
Power Consumption:
23 VA
Contact Rating (AC):
10 A @ 600V
Body Height:
3.5 in
Compatible with Series:
8501 Type X Latching Control Relays
Body Width:
2.23 in
Coil Voltage:
110/120V AC
Maximum Operating Temperature:
160 Degrees F
Input Voltage:
110/120V AC
Overall Height:
3.5 in
Minimum Operating Temperature:
-40 Degrees F
Number of Pins:
14
Mounting Style:
Surface
Relay Style:
NEMA
Lead Size:
18 AWG
Current Rating:
10 A
Frequency:
50/60 Hz
Package Quantity:
1
