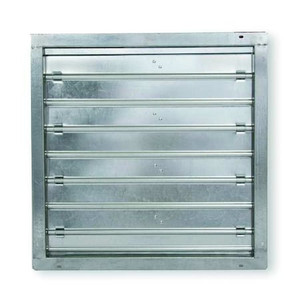

Mtrzd Damper, For Fan Dia. 48", 100-240V - 3C731

Mtrzd Damper, For Fan Dia. 48", 100-240V - 3C731

Dayton
SKU:
3C731
|
UPC:
190735281215
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
51 In.H-W 13.3 In.L Squ Stl Mtrzd Cntrl Dampr, For Nominal Duct Diameter Not Applicable, Damper Application Motorized, Number of Panels 1, Overall Height 51 in, Overall Length 13 1/4 in, Rough Opening Shape Square, For Duct Shape Square, Overall Width 51 in, Frame Material Thickness 14 ga, Blade Material Galvanized Steel, Maximum Air Pressure 4 in wg, Overall Diameter 51 in, Rough Opening Length 49 in, Rough Opening Width 49 in, Damper Type Dynamic, Maximum Air Velocity 3500 fpm
Additional Information
Country of Origin:
United States
Item:
51H-W 13.3"L Squ Stl Mtrzd Cntrl Dampr"
For Fan Dia.:
48 in
Voltage:
100 to 240
Overall Square:
51 in
Sq. Opening Required:
49 in
Free Area:
14.8 sq ft
Frame Less Flange:
48 sq in
Motor Bracket Extension:
10 1/4 in
Hz:
50/60
Operation:
Power Open, Spring Return
Features:
14 Gauge Frame and 16 Gauge Blades
Mounting Position:
Horizontal; Vertical
For Use With:
Intake or Exhaust Applications
Number of Panels:
1
Flange Width:
1 1/2 in
Material:
Galvanized Steel
Overall Height:
51 in
Overall Length:
13 1/4 in
Overall Width:
51 in
Standards:
NEC; OSHA
Phase:
1
Jamb Seal Material:
Stainless Steel
Rough Opening Length:
49 in
Maximum Air Velocity:
3500 fpm
Closure Velocity Rating:
3,500 fpm
Damper Application:
Motorized
Fusible Link Temperature:
Not Applicable
Frame Material:
Steel
Overall Diameter:
51 in
Maximum Temperature Rating:
122 Degrees F
Switch Action:
Normally Open
ACMA Leakage Class:
Not Applicable
For Duct Shape:
Square
Rough Opening Width:
49 in
Rough Opening Diameter:
49 in
Includes Motor:
Yes
Airflow Direction:
Horizontal; Vertical
Blade Orientation:
Parallel Blades
Maximum Air Pressure:
4 in wg
Closure Pressure Rating:
4 in wc
Damper Finish:
Plain
Nameplate Voltage:
100/240V AC
For Nominal Duct Diameter:
Not Applicable
Blade Type:
Flat Blade
Flange Type:
Reversed Flange
Frame Material Thickness:
14 ga
Damper Type:
Dynamic
Bushing Material:
Brass
Frequency:
50/60 Hz
Counterbalanced:
No
Pressure Drop @ 1000 fpm (AMCA 5.2):
0.15 in wg
Full Load Current:
3 A
Rough Opening Shape:
Square
Series:
GMD-SP
Axle Material:
Plated Steel
Blade Material Thickness:
16 ga
Blade Material:
Galvanized Steel
Blade Seal Material:
Not Applicable
Package Quantity:
1
