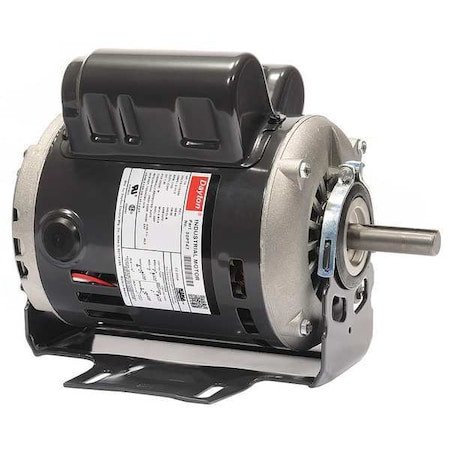

MTR, CS/CR, ODP, 3/4 HP, 3450, 56, EFF 76.2 - 30PT89

MTR, CS/CR, ODP, 3/4 HP, 3450, 56, EFF 76.2 - 30PT89

Dayton
SKU:
30PT89
|
UPC:
190735248768
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.0/3.6 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Motor
Motor Design:
Capacitor-Start/Run
Phase:
Single
HP:
3/4 hp
RPM Range:
3,001-3,600
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Frame:
56
Voltage:
115/230V AC
Motor Thermal Protection:
Auto
Motor Enclosure Design:
Open Drip Proof
Motor Mounting Type:
Cradle Base
Full Load Amps:
7.0/3.6 A
Nameplate RPM:
3,450
Shaft Length:
1 7/8 in
Motor Bearings:
Ball
Duty:
Continuous
Green Certification or Other Recognition:
Energy Aware
Max. Ambient Temp.:
40 Degrees C
Nominal Efficiency:
76.2 %
RPM Group:
3001-3600
Motor Frame Material:
Steel
Motor Shaft Design:
Keyed
Motor Mounting Position:
Horizontal
No. of Speeds:
1
Motor Efficiency Group:
Premium Efficient
Includes:
Start Cap 357MFD @ 165V
Manufacturers Warranty Length:
1 yr
Overall Length:
11 13/16 in
Ins. Class:
B
Hz:
60 Hz
Shaft Dia.:
5/8 in
Standards:
CSA (258501), UL (E47479)
Green Environmental Attribute:
Product Contributes To Reducing Energy Consumption
Frame Material:
Rolled steel
Motor Service Factor:
1.25
Length Less Shaft:
9 7/8 in
Motor Application:
General Purpose
Motor Shaft Rotation:
CW/CCW
Inverter Rated:
Not Inverter Rated
Duty Cycle:
Continuous
Capacitor Required:
Yes
RPM @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Package Quantity:
1
