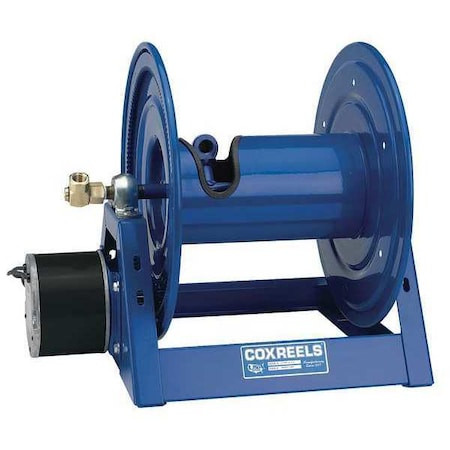

Motorized Hose Reel, 1/2x325 - 1125-4-325-E

Motorized Hose Reel, 1/2x325 - 1125-4-325-E

Coxreels
SKU:
1125-4-325-E
|
UPC:
674255822344
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Motor Driven Hose Reel, Motor Voltage 12V DC, Drive Type Motorized, Overall Height 18 3/4 in, Overall Length 17 1/2 in, Overall Width 30 3/8 in
Additional Information
Country of Origin:
United States
Motor Voltage:
12V DC
Hose Length:
325 ft
Overall Length:
17 1/2 in
Seal Type:
Nitrile
Hose Ends:
1/2 in (M)NPT
Application:
Air, Water, Oil, Washdown, Pressure Washing, Hydro-Seeding
Finish:
Powder Coated
Hose Outlet:
1/2 in (M)NPT
HP:
0.33
Bearings:
Permanently Lubricated
Hose Included:
No
Swivel Material:
Solid Brass
Duty Rating:
Heavy Duty
Overall Width:
30 3/8 in
Reel Inlet:
1/2 in (F)NPT
Drive Type:
Motorized
Item:
Motor Driven Hose Reel
Color:
Blue
Hose Inside Dia.:
1/2 in
Housing Material:
Steel
Hose Outside Dia.:
7/8 in
Max. Pressure Rating:
3000 psi
Mounting:
Bench, Floor, Truck, Wall
Overall Height:
18 3/4 in
Reel Width:
18 in
Hazardous Location:
No
Features:
Gear Driven Drive System, Heavy Duty Solid Spun Discs With Rolled Edge, Low Profile Risers for No-Hump Winding
Hose Capacity:
325 ft (1/2 in I.D.)
Swivel Outlet Gender:
Female
Includes Leader Hose:
No
Motor Type:
1/3 HP 12VDC Motor
Weight:
61 lb
Swivel Inlet Type:
NPT
Swivel Outlet Size:
1/2 in
Swivel Outlet Type:
NPT
Minimum Operating Temperature:
-40 Degrees F
Seal Material:
Nitrile
Mounting Hole Center to Center Height:
10 in
Enclosed:
No
Swivel Inlet Thread Size:
1/2 in - 14
Reel Finish:
Powder Coated
For Dual Hose:
No
Reel Diameter:
6 1/4 in
Includes Gooseneck:
Yes
Minimum Operating Pressure:
0 psi
Reel Material:
Steel
Reel Color:
Blue
Bearing Construction:
Permanently Lubricated
Hose Reel Type:
Floor, Vehicle Mount Hose Reel, Wall Mount Hose Reel
Swivel Inlet Size:
1/2 in
Overall Dimensions:
17 5/8 in L x 30 in W x 19 3/4 in H
Maximum Operating Pressure:
3,000 psi
Mount Base Height:
16 in
Base Motion Type:
Stationary
Swivel Inlet Gender:
Female
Mount Base Width:
23 3/8 in
Maximum Operating Temperature:
250 Degrees F
Mounting Hole Center to Center Width:
21 3/8 in
Includes Hose:
No
Latch Type:
Locking
Swivel Outlet Thread Size:
1/2 in - 14
Vacuum Rating:
Not Rated
Horsepower:
1/3 hp
Standards:
CE
Hose Reel Primary Application:
Air, Chemical Fluid Transfer, Oil/Lubrication, Pest Control, Pressure Washer, Spray Operations, Washdown, Water
Package Quantity:
1
