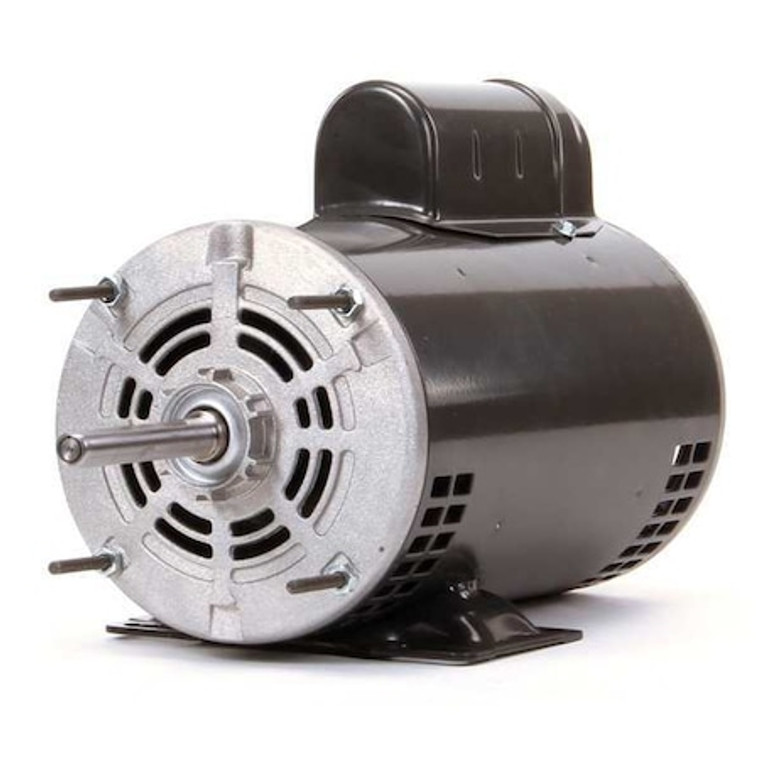

Motor, PSC, 1 HP, 1140 RPM, 115/230V, 48Z, OAO - 4YU26

Motor, PSC, 1 HP, 1140 RPM, 115/230V, 48Z, OAO - 4YU26

Dayton
SKU:
4YU26
|
UPC:
190735339121
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.4/5.7 A, 48Z Frame, Replacement For 4HZ57, 4HZ59, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Rigid Base
Additional Information
Country of Origin:
United States
Ins. Class:
B
Motor Bearings:
Ball
Motor Service Factor:
1
Length Less Shaft:
10 13/16 in
Motor Design:
Permanent Split Capacitor
Motor Application:
HVAC/R
Motor Mounting Position:
All Angle
Motor Mounting Type:
Rigid Base
Full Load Amps:
11.4/5.7 A
Motor Sub Application:
Direct Drive
Capacitor Required:
Included
Shaft Length:
3 in
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
RPM Range:
1,101-1,200
Application:
Replacement Motor for Mfr. No. 4HZ57, 4HZ59
Motor Shaft Rotation:
CW/CCW
Voltage:
115/230V AC
No. of Speeds:
1
HP:
1
Shaft Dia.:
1/2 in
Motor Enclosure Design:
Open Air-Over
Phase:
Single
Nameplate RPM:
1,140
Hz:
60 Hz
Body Dia.:
5 5/8 in
Duty:
Continuous
Replacement For:
4HZ57, 4HZ59
Max. Ambient Temp.:
40 Degrees C
Frame:
48Z
Motor Thermal Protection:
Auto
Motor Shaft Design:
Flat
Item:
Direct Drive Blower Motor
Standards:
CSA Certified, UL Recognized
Number of Shafts:
1
Includes:
Capacitor
Usable @ 208V:
No
Stud Quantity:
4
Duty Cycle:
Continuous
Usable @ 200V:
No
Conduit Box Position:
F3
Mounting:
Rigid Base
Number of Speeds:
1
Package Quantity:
1
