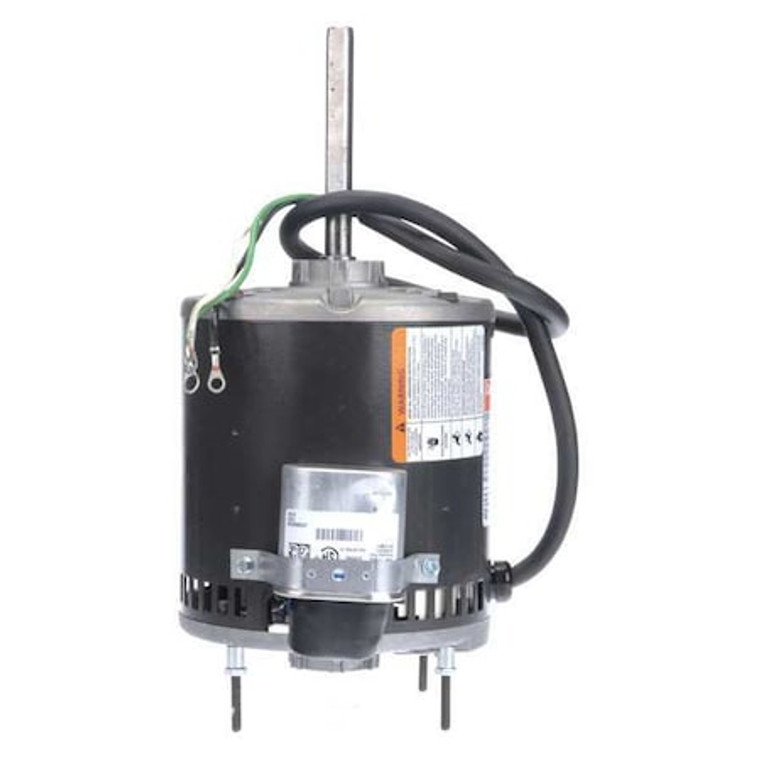

Motor, PSC, 1/6 HP, 1140 RPM, 115V, 48Y, OAO - 5BE62

Motor, PSC, 1/6 HP, 1140 RPM, 115V, 48Y, OAO - 5BE62

Dayton
SKU:
5BE62
|
UPC:
190735342220
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115V AC, Full Load Amps 2.2 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle, Number of Shafts 1
Additional Information
Country of Origin:
Multiple
Application:
Blowers, Fans and Air Circulators
Mounting Stud Pattern:
3-5/8 in x 3-5/8 in
Mounting Stud Location:
Opposite Shaft End
Ins. Class:
B
Full Load Amps:
2.2 A
Motor Mounting Position:
All Angle
Motor Thermal Protection:
Auto
Stud Size:
#10-32
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Application:
HVAC/R
Duty:
Continuous
Motor Enclosure Design:
Open Air-Over
Body Dia.:
5 11/16 in
Motor Shaft Rotation:
CW/CCW
Shaft Length:
4 in
Motor Bearings:
Ball
Motor Design:
Permanent Split Capacitor
Max. Ambient Temp.:
40 Degrees C
Motor Sub Application:
Direct Drive
Standards:
CSA Certified, UL Recognized
HP:
1/6
Motor Service Factor:
1
Item:
Direct Drive Blower Motor
Motor Mounting Type:
Ring/Stud
Motor Shaft Design:
Flat
Length Less Shaft:
7 5/16 in
Shaft Dia.:
1/2 in
RPM Range:
1,101-1,200
Nameplate RPM:
1,140
Hz:
60 Hz
Voltage:
115V AC
Capacitor Required:
Included
Bolt Circle Dia.:
5 1/8 in
No. of Speeds:
1
Frame:
48Y
Phase:
Single
Usable @ 208V:
No
Duty Cycle:
Continuous
Usable @ 200V:
No
Number of Shafts:
1
Includes:
Capacitor
Stud Quantity:
4
Mounting Holes:
(4) #10-32
Conduit Box Position:
F3
Number of Speeds:
1
Mounting:
Stud
Package Quantity:
1
