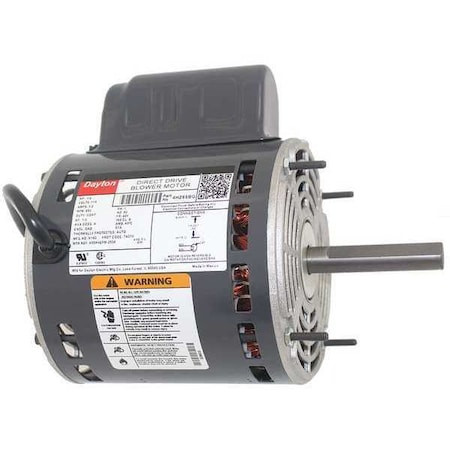

Motor, PSC, 1/4 HP, 850 RPM, 115V, 48Y, OAO - 4HZ65BG

Motor, PSC, 1/4 HP, 850 RPM, 115V, 48Y, OAO - 4HZ65BG

Dayton
SKU:
4HZ65BG
|
UPC:
190735326442
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 850, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3.2 A, 48Y Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position All Angle
Additional Information
Country of Origin:
Mexico
HP:
1/4
Shaft Length:
3 in
Application:
Mfr. No. 4HZ28, 4HZ52, 4HZ54
Item:
Direct Drive Blower Motor
Standards:
CSA Certified, UL Recognized
Voltage:
115V AC
Motor Shaft Design:
Flat
Motor Shaft Rotation:
CCWSE
Ins. Class:
B
Motor Mounting Position:
All Angle
Duty:
Continuous Air-over
Motor Thermal Protection:
Auto
No. of Speeds:
1
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application:
Direct Drive
Max. Ambient Temp.:
40 Degrees C
Nameplate RPM:
850
Motor Service Factor:
1
RPM Range:
0-1,000
Motor Bearings:
Ball
Motor Enclosure Design:
Open Air-Over
Full Load Amps:
3.2 A
Phase:
Single
Capacitor Required:
Included
Frame:
48Y
Hz:
60 Hz
Motor Mounting Type:
Ring/Stud
Motor Design:
Permanent Split Capacitor
Motor Application:
HVAC/R
Shaft Dia.:
5/8 in
Length Less Shaft:
5 13/16 in
Duty Cycle:
Continuous
Number of Speeds:
1
Mounting:
Stud
Package Quantity:
1
