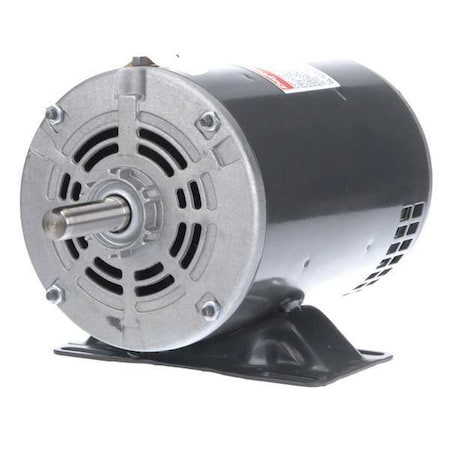

Motor, 3 Ph, 1 HP, 1725,208-230/460V, 56, ODP - 4YU38

Motor, 3 Ph, 1 HP, 1725,208-230/460V, 56, ODP - 4YU38

SKU:
4YU38
|
UPC:
190735339244
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Direct Drive Blower Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.4-3.4/1.7 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection None, 60/50 Hz Hz, Motor Service Factor 1.15, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Dripproof, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
Country of Origin:
Mexico
Motor Enclosure Design:
Open Dripproof
Motor Sub Application:
Direct Drive Fan/Blower
Standards:
CSA Certified, UL Recognized
Nominal Efficiency:
0.79 %
Ins. Class:
B
Motor Thermal Protection:
None
Phase:
Three
Hz:
60/50 Hz
Capacitor Required:
No
Full Load Amps:
3.4-3.4/1.7 A
Length Less Shaft:
9 9/16 in
No. of Speeds:
1
Item:
Direct Drive Blower Motor
Max. Ambient Temp.:
40 Degrees C
Motor Bearings:
Ball
Shaft Dia.:
5/8 in
Motor Mounting Type:
Rigid Base
Shaft Length:
1 7/8 in
Body Dia.:
5 5/8 in
Voltage:
208-230/460V AC
Frame:
56
Motor Application:
HVAC/R
Nameplate RPM:
1,725
HP:
1
Motor Service Factor:
1.15
RPM Range:
1,701-1,800
Motor Design:
3-Phase
Motor Mounting Position:
All Angle
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Duty:
Continuous
Usable @ 208V:
Yes
Stud Quantity:
4
HP @ 50Hz:
1
Usable @ 200V:
No
Full Load Amps @ 50Hz:
1.70 A
Voltage @ 50Hz:
460V AC
Number of Shafts:
1
Service Factor @ 50Hz:
1.15
Duty Cycle:
Continuous
Includes:
Capacitor
RPM @ 50Hz:
1,725 RPM
Mounting:
Rigid Base
Number of Speeds:
1
Package Quantity:
1
