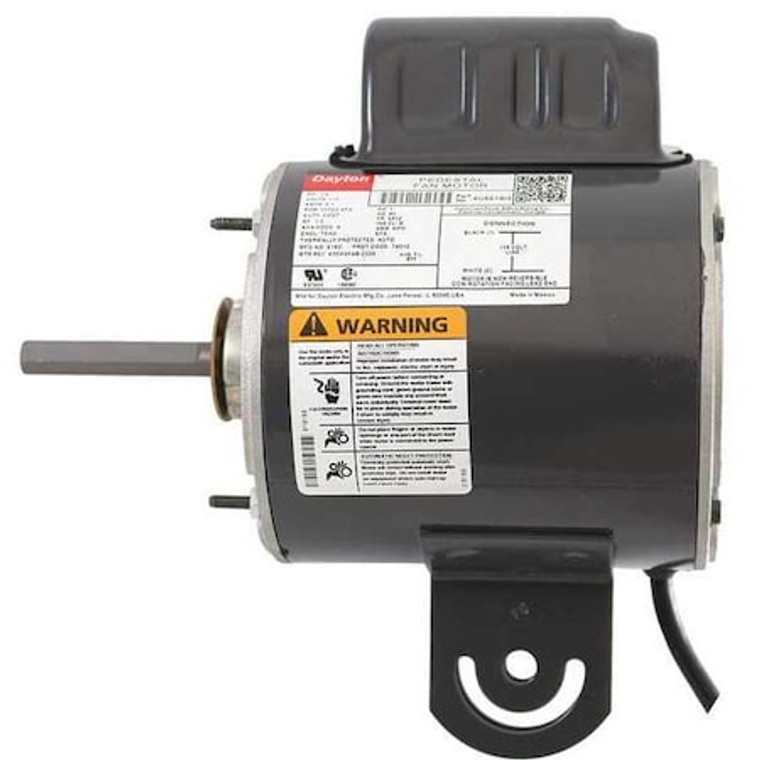

Motor, 1/4 HP, Yoke - 4UX61
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Motor, 1/4 HP, Yoke - 4UX61
Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 115V AC, 3.1 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 3 in, Shaft Dia. 1/2 in
- Country of Origin:
- Multiple
- Item:
- Pedestal Fan Motor
- Motor Design:
- Permanent Split Capacitor
- Phase:
- Single
- HP:
- 1/4
- RPM Range:
- 1,001-1,100
- No. of Speeds:
- 2
- Voltage:
- 115V AC
- Motor Shaft Rotation:
- CWSE
- Frame:
- 48YZ
- Motor Enclosure Design:
- Totally Enclosed Air-Over
- 10 Ft. Cord and Pull Chain Switch:
- Yes
- Shaft Length:
- 3 in
- Voltage Compatibility:
- 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
- Shaft Dia.:
- 1/2 in
- Body Dia.:
- 5 5/8 in
- Max. Ambient Temp.:
- 40 Degrees C
- Standards:
- CSA Certified, UL Recognized
- Overall Length:
- 9 11/16 in
- Duty:
- Continuous
- Motor Bearings:
- Ball
- Includes:
- Water Slinger
- Full Load Amps:
- 3.1 A
- Motor Service Factor:
- 1
- Ambient Temperature:
- 40 Degrees C
- Ins. Class:
- B
- Capacitor Required:
- Included
- Motor Application:
- HVAC/R
- Motor Mounting Type:
- Yoke
- Hz:
- 60 Hz
- Motor Sub Application:
- Pedestal Fan
- Nameplate RPM:
- 1,075
- Motor Thermal Protection:
- Auto
- Motor Shaft Design:
- Flat
- Application:
- Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
- Motor Mounting Position:
- Horizontal
- Duty Cycle:
- Continuous
- Package Quantity:
- 1
