Motor, 1/2 HP, Yoke - 4UX63
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

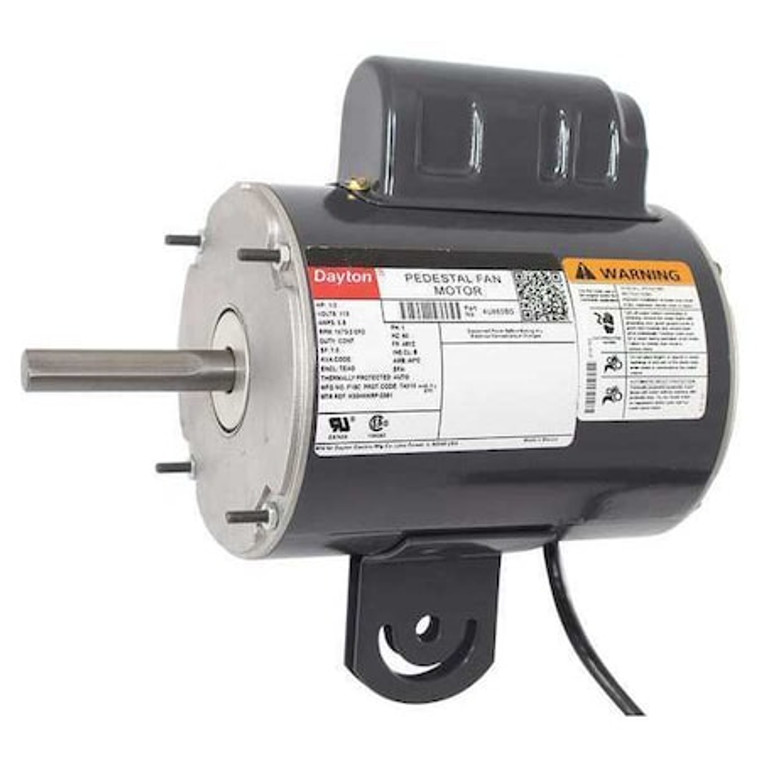

Motor, 1/2 HP, Yoke - 4UX63
Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 115V AC, 5.8 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 3 1/16 in, Shaft Dia. 5/8 in
- Country of Origin:
- Multiple
- Item:
- Pedestal Fan Motor
- Motor Design:
- Permanent Split Capacitor
- Phase:
- Single
- HP:
- 1/2
- RPM Range:
- 1,001-1,100
- No. of Speeds:
- 2
- Voltage:
- 115V AC
- Motor Shaft Rotation:
- CWSE
- Frame:
- 48YZ
- Motor Enclosure Design:
- Totally Enclosed Air-Over
- Hz:
- 60 Hz
- Motor Sub Application:
- Pedestal Fan
- Capacitor Required:
- Included
- Ins. Class:
- B
- Application:
- Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
- Standards:
- CSA Certified, UL Recognized
- Duty:
- Continuous
- Motor Service Factor:
- 1
- Motor Shaft Design:
- Flat
- Motor Bearings:
- Ball
- Motor Application:
- HVAC/R
- Motor Thermal Protection:
- Auto
- Overall Length:
- 10 7/16 in
- Max. Ambient Temp.:
- 40 Degrees C
- Motor Mounting Type:
- Yoke
- Body Dia.:
- 5 5/8 in
- 10 Ft. Cord and Pull Chain Switch:
- Yes
- Full Load Amps:
- 5.8 A
- Nameplate RPM:
- 1,075
- Shaft Length:
- 3 1/16 in
- Shaft Dia.:
- 5/8 in
- Voltage Compatibility:
- 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
- Ambient Temperature:
- 40 Degrees C
- Includes:
- 10-Ft Cord and Pull-Chain Switch
- Duty Cycle:
- Continuous
- Motor Mounting Position:
- Horizontal
- Package Quantity:
- 1
