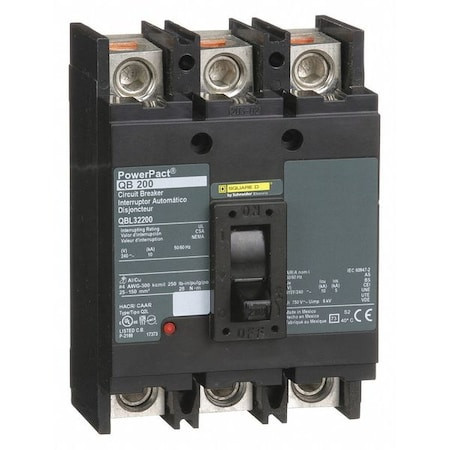

Molded Case Circuit Breaker, QBL Series, 200A, 3 Pole, 240V AC, 10kA at 240V AC - QBL32200

Molded Case Circuit Breaker, QBL Series, 200A, 3 Pole, 240V AC, 10kA at 240V AC - QBL32200

Square D
SKU:
QBL32200
|
UPC:
785901417866
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Molded Case Circuit Breaker, 200 A Amps, AC Voltage Rating 240V AC, Max. AIR Rating 10kA at 240V AC, For Use With -, Series QB, High Amp Trip Setting 2,400 A, Low Amp Trip Setting 1,200 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 250A/QB, Circuit Breaker Mounting Style Free Standing, Height 6.47 in, Width 4.5 in
Additional Information
Country of Origin:
Mexico
Item:
Molded Case Circuit Breaker
Series:
QBL
Amps:
200A
Number of Poles:
3
AC Voltage Rating:
240V AC
Circuit Breaker Type:
Standard
Phase:
3
Circuit Breaker Actuator:
Toggle
Circuit Breaker Mounting Style:
Unit Mount
Max. AIR Rating:
10kA at 240V AC
Trip Type:
Thermal Magnetic
Instantaneous Trip:
Fixed
Terminal Connection:
Line/Load Lug
Phase Connection:
ABC
Frame Size:
250A/QB
Width:
4.5 in
Depth:
3.93 in
Height:
6.47 in
DC Voltage Rating:
Not Rated
Min. Wire Size:
4 AWG
Max. Wire Size:
300 MCM
Low Amp Trip Setting:
1,200 A
Standards:
CSA, IEC, UL Listed
High Amp Trip Setting:
2,400 A
Interrupt Rating:
10 kA at 120/208/240V AC
Application:
HACR rated Applications; Distribution
Features:
Mercury Free; PVC Free
Mounting:
Free Standing
Package Quantity:
1
