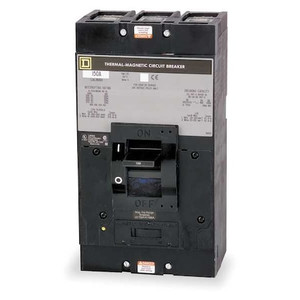

Molded Case Circuit Breaker, Q4 Series, 300A, 3 Pole, 240V AC, 25kA at 120/240V AC - Q4L3300

Molded Case Circuit Breaker, Q4 Series, 300A, 3 Pole, 240V AC, 25kA at 120/240V AC - Q4L3300

Square D
SKU:
Q4L3300
|
UPC:
785901649267
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Molded Case Circuit Breaker, 300 A Amps, AC Voltage Rating 240V AC, Max. AIR Rating 25kA at 120/240V AC, For Use With Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards, Series Q4, High Amp Trip Setting 3,000 A, Low Amp Trip Setting 1,500 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Adjustable
Additional Information
Country of Origin:
Mexico
Item:
Molded Case Circuit Breaker
Series:
Q4
Amps:
300A
Number of Poles:
3
AC Voltage Rating:
240V AC
Circuit Breaker Type:
Standard
Phase:
3
Circuit Breaker Actuator:
Toggle
Circuit Breaker Mounting Style:
Unit Mount
Max. AIR Rating:
25kA at 120/240V AC
Trip Type:
Thermal Magnetic
Instantaneous Trip:
Adjustable
Terminal Connection:
Lug
Phase Connection:
ABC
Frame Size:
400A/Q4
Width:
6 in
Depth:
5.84 in
Height:
11 in
DC Voltage Rating:
Not Rated
Standards:
CSA, IEC, UL Listed
Min. Wire Size:
1/0 AWG
Low Amp Trip Setting:
1,500 A
Max. Wire Size:
250 MCM, 600 MCM
High Amp Trip Setting:
3,000 A
For Use With:
Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
Features:
Mercury Free; PVC Free
Max. Operating Temp.:
104 Degrees F
Min. Operating Temp.:
104 Degrees F
Mounting:
Free Standing
Package Quantity:
1
