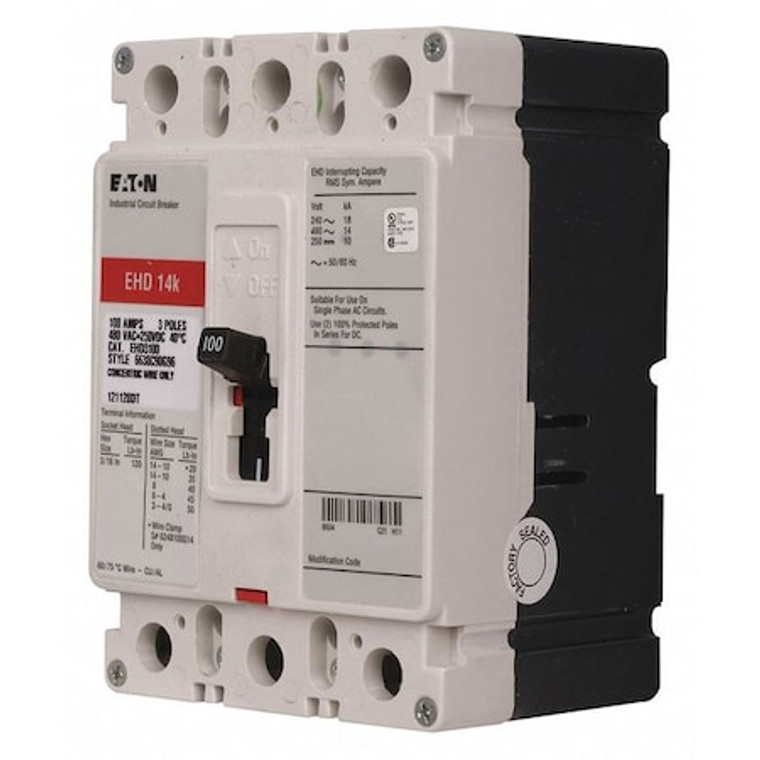

Molded Case Circuit Breaker, EHD Series, 100A, 3 Pole, 480V AC, 18kA at 240V AC - EHD3100

Molded Case Circuit Breaker, EHD Series, 100A, 3 Pole, 480V AC, 18kA at 240V AC - EHD3100

Eaton
SKU:
EHD3100
|
UPC:
786679317204
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Molded Case Circuit Breaker, 100 A Amps, AC Voltage Rating 480V AC, Max. AIR Rating 18kA at 240V AC, For Use With Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse, Series EHD, High Amp Trip Setting 100 A, Low Amp Trip Setting 15 A, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating 250V DC, Terminal Connection Load Side Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC
Additional Information
Country of Origin:
Dominican Republic
Item:
Molded Case Circuit Breaker
Series:
EHD
Amps:
100A
Number of Poles:
3
AC Voltage Rating:
480V AC
Circuit Breaker Type:
Standard
Phase:
3
Circuit Breaker Actuator:
Toggle
Circuit Breaker Mounting Style:
Free Standing
Max. AIR Rating:
18kA at 240V AC
Trip Type:
Thermal Magnetic
Instantaneous Trip:
Fixed
Terminal Connection:
Load Side Lug
Phase Connection:
ABC
Frame Size:
100A/F
Width:
4.13 in
Depth:
3.38 in
Height:
6 in
DC Voltage Rating:
250V DC
High Amp Trip Setting:
100 A
Standards:
CSA Certified, IEC Rated, UL Listed
For Use With:
Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
Max. Wire Size:
1/0 AWG
Min. Wire Size:
14 AWG
Low Amp Trip Setting:
15 A
Interrupt Rating:
14 kA at 480V AC
Frame Type:
Complete Breaker
Min. Operating Temp.:
-4 Degrees F
Max. Operating Temp.:
158 Degrees F
Product Name:
Eaton Series C complete molded case circuit breaker
Frequency Rating:
50/60 Hz
Certifications:
UL Listed
Frame:
F
Mounting:
Free Standing
Package Quantity:
1
