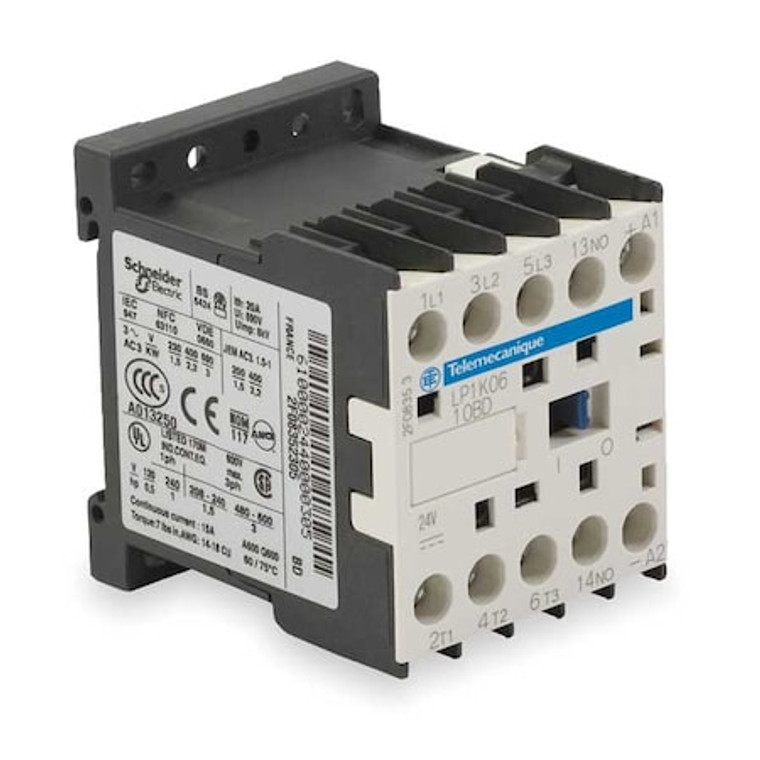

Miniature IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No - LP1K0910BD

Miniature IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No - LP1K0910BD

Square D
SKU:
LP1K0910BD
|
UPC:
785901832485
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 20 A, Reversing Capability Non-Reversing, Overall Height 2.28 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys K, Number of Auxillary Contacts 1, Contactor Style IEC
Additional Information
Country of Origin:
France
Full Load Amps-Inductive:
9 A
Item:
Miniature IEC Magnetic Contactor
Action:
Non-Reversing
Full Load Amps-Resistive:
20 A
Number of Poles:
3
Coil Volts:
24 V DC
Reversing:
No
HP @ 1 Phase - 230V:
1-1/2
HP @ 1 Phase - 120V:
1/2 hp
Height:
1.77 in
HP @ 1 Phase - 240V:
1 1/2 hp
HP @ 3 Phase - 208V:
2 hp
Width:
1.77 in
HP @ 3 Phase - 240V:
3 hp
HP @ 3 Phase - 575V:
5 hp
Depth:
2.24 in
Enclosure NEMA Rating:
No Enclosure
HP @ 3 Phase - 480V:
5 hp
Aux. Contact Configuration:
1NO
Hz:
50/60
Auxiliary Contact Form:
1NO
Standards:
CSA, UKCA, UL Listed
Frame / Series / Class / Code:
TeSys
Series:
TeSys K
NEMA Size:
Not Applicable
Rated Insulation Volts:
600/690V
Fuse Amps:
25 A (Power Circuit), 10 A (Signalling Circuit)
Switching Voltage:
17 V (Signalling Circuit)
Switching Current:
5 mA (Signalling Circuit)
Mechanical Durability:
10 Mcycles
Net Weight:
0.225 kg
Electrical Durability:
1.3 Mcycles 9 A AC-3 Less than or Equal to 440 V; 1.3 Mcycles 9 A AC-3e Less than or Equal to 440 V; 0.16 Mcycles 20 A AC-1 Less than or Equal to 690 V; 0.02 Mcycles 54 A AC-4 Less than or Equal to 440 V
Control Circuit Voltage Limits:
Operational
Environmental Attributes:
Mercury Free, Toxic Heavy Metal Free
Thermal Amperage:
20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
Rated Voltage:
690V AC
Rated Making Capacity:
110 A
Insulation Resistance Range:
Greater Than 10 MOhms (Signalling Circuit)
Tightening Torque:
0.8 to 1.3 Nm
Impedance:
3 mOhm
Rated Breaking Capacity:
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
Working Height:
6561.68 ft
Mounts On:
Plate, Rail
Application:
Motor Control, Resistive Load
Operating Speed:
3600 cycles per hr
Fire Rating:
UL 94 V1, NF F 16-101, NF F 16-102
Overvoltage Category:
CAT III
Operating Time:
30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)
Impulse Withstand Voltage:
8 kV
Overall Depth:
2.24 in
Number of Auxillary Contacts:
1
NEMA Enclosure Rating:
No Enclosure
Frequency:
50/60 Hz
Number of Normally Open Main Contacts:
3
Full Load Current - Inductive:
9 A
Maximum Voltage Rating:
690V AC
Maximum Operating Temperature:
122 Degrees F
Embedded Surge Suppressor:
No
Horsepower @ Three Phase - 600V AC:
5 hp
Overall Width:
1.77 in
Horsepower @ Three Phase - 240V AC:
3 hp
Includes Auxiliary Contacts:
Yes
Horsepower @ Single Phase - 240V AC:
1 1/2 hp
Overall Height:
2.28 in
Full Load Current - Resistive:
20 A
Terminal Connection Type:
Screw Clamp Terminals
NEMA Enclosure Material:
Not Applicable
Horsepower @ Three Phase - 480V AC:
5 hp
Mechanical Operating Durability:
10,000,000
Minimum Operating Temperature:
-13 Degrees F
Mounting Style:
DIN Rail, Plate
Coil Voltage:
24V DC
Resistance Properties:
Insulation Resistant
Contactor Style:
IEC
Horsepower @ Three Phase - 208V AC:
2 hp
Horsepower @ Single Phase - 120V AC:
1/2 hp
Reversing Capability:
Non-Reversing
Rated Operational Voltage:
Power circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz; Signalling circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz
Mounting Support:
Rail; Plate
Rated Short Time Withstand Current:
90 A 122°F (50°C) - 1 s for power circuit; 85 A 122°F (50°C) - 5 s for power circuit; 80 A 122°F (50°C) - 10 s for power circuit; 60 A 122°F (50°C) - 30 s for power circuit; 45 A 122°F (50°C) - 1 min for power circuit; 40 A 122°F (50°C) -
Maximum Operating Rate:
3600 cyc/h
Flame Retardance:
V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102
Poles Description:
3P
Average Impedance:
3 mOhm - Ith 20 A 50 Hz for power circuit
Auxiliary Contact Composition:
1 NO
Control Circuit Type:
DC standard
Ambient Air Temperature For Operation:
-13 to 122°F (-25 to 50°C)
Minimum Switching Current:
5 mA for signalling circuit
Contactor Application:
Motor control; Resistive load
Associated Fuse Rating:
25 A gG at Less than or Equal to 440 V for power circuit; 25 A aM for power circuit; 10 A gG for signalling circuit conforming to IEC 60947; 10 A gG for signalling circuit conforming to VDE 0660
Operating Altitude:
6561.68 ft (2000 m) without derating
Hold-In Power Consumption in W:
3 W 68°F (20°C)
IRMS Rated Making Capacity:
110 A AC for power circuit conforming to IEC 60947; 110 A AC for signalling circuit conforming to IEC 60947
Product Certifications:
CB Scheme; CCC; UL; CSA; EAC; CE; UKCA
Safety Reliability Level:
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Inrush Power in W:
3 W 68°F (20°C))
Utilisation Category:
AC-3; AC-3e; AC-1; AC-4
Ambient Air Temperature For Storage:
-58 to 176°F (-50 to 80°C)
Motor Power KW:
2.2 kW 220 to 230 V AC 50/60 Hz AC-3; 4 kW 380 to 415 V AC 50/60 Hz AC-3; 4 kW 440/690 V AC 50/60 Hz AC-3; 2.2 kW 220 to 230 V AC 50/60 Hz AC-3e; 4 kW 380 to 415 V AC 50/60 Hz AC-3e; 4 kW 440/690 V AC 50/60 Hz AC-3e; 2.2 kW 220 to 230 V AC 50/60 Hz A
Power Pole Contact Composition:
3 NO
Insulation Resistance:
Greater than 10 MOhm for signalling circuit
Connections - Terminals:
screw clamp terminals 1 0.00 to 0.01 in² (1.5 to 4 mm²)solid; screw clamp terminals 1 0.00 to 0.01 in² (0.75 to 4 mm²)flexible without cable end; screw clamp terminals 1 0.00 to 0.00 in² (0.34 to 2.5 mm²)flexible with cable end; screw clamp ter
Rated Operational Current:
9 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 9 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit; 20 A (at Less than 140°F (60°C)) at Less than or Equal to 690 V
Rated Insulation Voltage:
Power circuit 600 V UL 508; Power circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-5-1; Signalling circuit 600 V UL 508; Power circuit 600 V CSA C22.2 No 14; Signalling circuit 600 V CSA C22.2 No
Auxiliary Contacts Type:
Instantaneous 1 NO
Conventional Free Air Thermal Current:
20 A (at 140°F (60°C)) for power circuit; 10 A (at 122°F (50°C)) for signalling circuit
IP Degree Of Protection:
IP2X
Heat Dissipation:
1.3 W
Product Or Component Type:
Contactor
Minimum Switching Voltage:
17 V for signalling circuit
Package Quantity:
1
