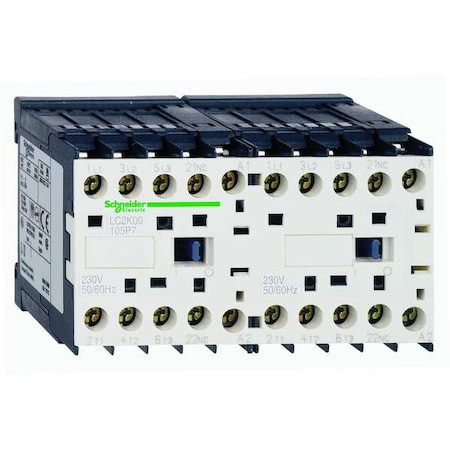

Miniature IEC Magnetic Contactor, 3 Poles, 120 V AC, 12 A, Reversing: Yes - LC2K1201G7

Miniature IEC Magnetic Contactor, 3 Poles, 120 V AC, 12 A, Reversing: Yes - LC2K1201G7

Square D
SKU:
LC2K1201G7
|
UPC:
785901797968
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature IEC Magnetic Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 20 A, Reversing Capability Reversing, Overall Height 2.28 in, Overall Width 3.54 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys K, Number of Auxillary Contacts 1, Contactor Style IEC
Additional Information
Country of Origin:
France
Full Load Amps-Inductive:
12 A
Item:
Miniature IEC Magnetic Contactor
Action:
Reversing
Full Load Amps-Resistive:
20 A
Number of Poles:
3
Coil Volts:
120 V AC
Reversing:
Yes
HP @ 1 Phase - 230V:
1-1/2
HP @ 1 Phase - 120V:
1/2 hp
Height:
2.28 in
HP @ 1 Phase - 240V:
1 1/2 hp
Width:
3.54 in
Depth:
2.24 in
HP @ 3 Phase - 240V:
3 hp
HP @ 3 Phase - 575V:
10 hp
HP @ 3 Phase - 480V:
7 1/2 hp
Enclosure NEMA Rating:
No Enclosure
Aux. Contact Configuration:
1NC
Hz:
50/60
Auxiliary Contact Form:
1NC
Standards:
BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
NEMA Size:
Not Applicable
Series:
TeSys K
Features:
Preassembled with Reversing Power Busbar
Thermal Amperage:
20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
Overvoltage Category:
CAT III
Hold VA:
4.5 VA
Switching Current:
5 mA (Signalling Circuit)
Working Height:
6561.68 ft
Tightening Torque:
0.8 to 1.3 Nm
Rated Making Capacity:
144 A @ 690V (AC Power Circuit), 110 A (AC Signalling Circuit)
Mechanical Durability:
5 Mcycles
Control Circuit Voltage Limits:
Operational
Rated Breaking Capacity:
110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V
Mounts On:
Plate, Rail
Rated Short-Time Withstand Current:
115 A (at 50°C for 1 s Power Circuit), 105 A (at 50°C for 5 s Power Circuit), 100 A (at 50°C for 10 s Power Circuit), 75 A (at 50°C for 30 s Power Circuit), 55 A (at 50°C for 1 min Power Circuit), 50 A (at 50°C for 3 min Power Circuit), 80 A (F
Fuse Amps:
25 A (Power Circuit), 10 A (Signalling Circuit)
Electrical Connection:
Screw Clamp Terminals
Fire Rating:
UL 94 V1, NF F 16-101, NF F 16-102
Watts Loss:
1.3W
Shock Resistance:
10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)
IP Rating:
IP20
Rated Insulation Volts:
600/690V
Insulation Resistance Range:
Greater Than 10 MOhms (Signalling Circuit)
Operating Time:
10 to 20 ms (Coil Energisation and NO Closing), 10 to 20 ms (Coil De-Energisation and NO Opening)
Application:
Motor Control, Resistive Load
Vibration Resistance:
4 G (Contactor Closed), 2 G (Contactor Open)
Rated Voltage:
690V AC
Operating Speed:
3600 cycles per hr
Electrical Durability:
0.3 Mcycles (20 A, AC-1, Less than 440 V); 1.3 Mcycles (12 A, AC-3, Less than 440 V); 1.3 Mcycles (12 A, AC-3e, Less than 440 V)
Net Weight:
0.39 kg
Switching Voltage:
17 V (Signalling Circuit)
Impulse Withstand Voltage:
8 kV
Signalling Circuit Frequency:
Less Than 400 Hz
Inrush VA:
30 VA
Impedance:
3 mOhm
Max. Operating Watts:
4 kW (at 480V AC 50/60 Hz), 4 kW (at 500 to 600V AC 50/60 Hz), 4 kW (at 660 to 690V AC 50/60 Hz), 3 kW (at 220 to 230V AC 50/60 Hz), 5.5 kW (at 380 to 415VAC 50/60 Hz), 5.5 kW (at 440V AC 50/60 Hz)
Environmental Attributes:
Mercury Free, Toxic Heavy Metal Free
Number of Normally Open Main Contacts:
3
Mounting Style:
DIN Rail, Plate
Mechanical Operating Durability:
5,000,000
Horsepower @ Three Phase - 240V AC:
3 hp
Resistance Properties:
Insulation Resistant
Full Load Current - Inductive:
12 A
Electrical Operating Durability:
1,300,000, 300,000
Minimum Operating Temperature:
-13 Degrees F
Embedded Surge Suppressor:
No
Terminal Connection Type:
Screw Clamp Terminals
Horsepower @ Three Phase - 600V AC:
10 hp
Maximum Voltage Rating:
690V AC
Overall Height:
2.28 in
Frequency:
50/60 Hz
Reversing Capability:
Reversing
Overall Width:
3.54 in
Horsepower @ Single Phase - 120V AC:
1/2 hp
Horsepower @ Three Phase - 480V AC:
7 1/2 hp
Full Load Current - Resistive:
20 A
NEMA Enclosure Rating:
No Enclosure
Contactor Style:
IEC
Maximum Operating Temperature:
122 Degrees F
NEMA Enclosure Material:
Not Applicable
Number of Auxillary Contacts:
1
Includes Auxiliary Contacts:
Yes
Coil Voltage:
120V AC
Horsepower @ Single Phase - 240V AC:
1 1/2 hp
Overall Depth:
2.24 in
Mechanical Robustness:
Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on X axis6 Gn for 11 ms IEC
Auxiliary Contacts Type:
Instantaneous 1 NC
Utilisation Category:
AC-3; AC-1; AC-4; AC-3e
Power Pole Contact Composition:
3 NO
Inrush Power in VA:
30 VA (at 68°F (20°C))
Control Circuit Type:
AC 50/60 Hz
Rated Operational Voltage:
Power circuit 690 V AC 50/60 Hz; Signalling circuit Less than or Equal to 690 V AC 50/60 Hz
Mounting Support:
Plate; Rail
Rated Insulation Voltage:
Power circuit 600 V UL 508; Power circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-4-1; Signalling circuit 690 V IEC 60947-5-1; Signalling circuit 600 V UL 508; Power circuit 600 V CSA C22.2 No 14; Signalling circuit 600 V CSA C22.2 No
Rated Short Time Withstand Current:
115 A 122°F (50°C) - 1 s for power circuit; 105 A 122°F (50°C) - 5 s for power circuit; 100 A 122°F (50°C) - 10 s for power circuit; 75 A 122°F (50°C) - 30 s for power circuit; 55 A 122°F (50°C) - 1 min for power circuit; 50 A 122°F (50°C
Maximum Operating Rate:
3600 cyc/h
Safety Reliability Level:
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Conventional Free Air Thermal Current:
20 A (at 122°F (50°C)) for power circuit; 10 A (at 122°F (50°C)) for signalling circuit
Connections - Terminals:
screw clamp terminals 1 0.00 to 0.01 in² (1.5 to 4 mm²)solid; screw clamp terminals 1 0.00 to 0.01 in² (0.75 to 4 mm²)flexible without cable end; screw clamp terminals 1 0.00 to 0.00 in² (0.34 to 2.5 mm²)flexible with cable end; screw clamp ter
Protective Treatment:
TC IEC 60068; TC DIN 50016
Heat Dissipation:
1.3 W
Device Application:
Control
Product Certifications:
CB Scheme; CCC; UL; CSA; EAC; CE; UKCA
Non Overlap Distance:
0.02 in (0.5 mm)
Auxiliary Contact Composition:
1 NC
Interlocking Type:
Mechanical
Associated Fuse Rating:
25 A gG at Less than or Equal to 440 V for power circuit; 25 A aM for power circuit; 10 A gG for signalling circuit conforming to IEC 60947; 10 A gG for signalling circuit conforming to VDE 0660
Ambient Air Temperature For Storage:
-58 to 176°F (-50 to 80°C)
Motor Power KW:
4 kW 480 V AC 50/60 Hz; 4 kW 500 to 600 V AC 50/60 Hz; 4 kW 660 to 690 V AC 50/60 Hz; 3 kW 220 to 230 V AC 50/60 Hz; 5.5 kW 380 to 415 V AC 50/60 Hz; 5.5 kW 440 V AC 50/60 Hz
Operating Altitude:
6561.68 ft (2000 m) without derating
Contactor Application:
Resistive load; Motor control
Hold-In Power Consumption in VA:
4.5 VA (at 68°F (20°C))
IRMS Rated Making Capacity:
144 A at 690 V AC for power circuit conforming to NF C 63-110; 144 A at 690 V AC for power circuit conforming to IEC 60947; 110 A AC for signalling circuit conforming to IEC 60947
Insulation Resistance:
Greater than 10 MOhm for signalling circuit
Rated Operational Current:
20 A (at Less than 122°F (50°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 16 A (at Less than 158°F (70°C)) at 690 V AC AC-1 for power circuit; 12 A at Less than or Equal to 440 V AC AC-3 for power circuit; 12 A at Less than or Eq
Average Impedance:
3 mOhm - Ith 20 A 50 Hz for power circuit
Flame Retardance:
V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102
Control Circuit Voltage:
120 V AC 50/60 Hz
IP Degree Of Protection:
IP20 VDE 0106
Poles Description:
3P
Minimum Switching Voltage:
17 V for signalling circuit
Ambient Air Temperature For Operation:
-13 to 122°F (-25 to 50°C)
Minimum Switching Current:
5 mA for signalling circuit
Product Or Component Type:
Reversing contactor
Package Quantity:
1
