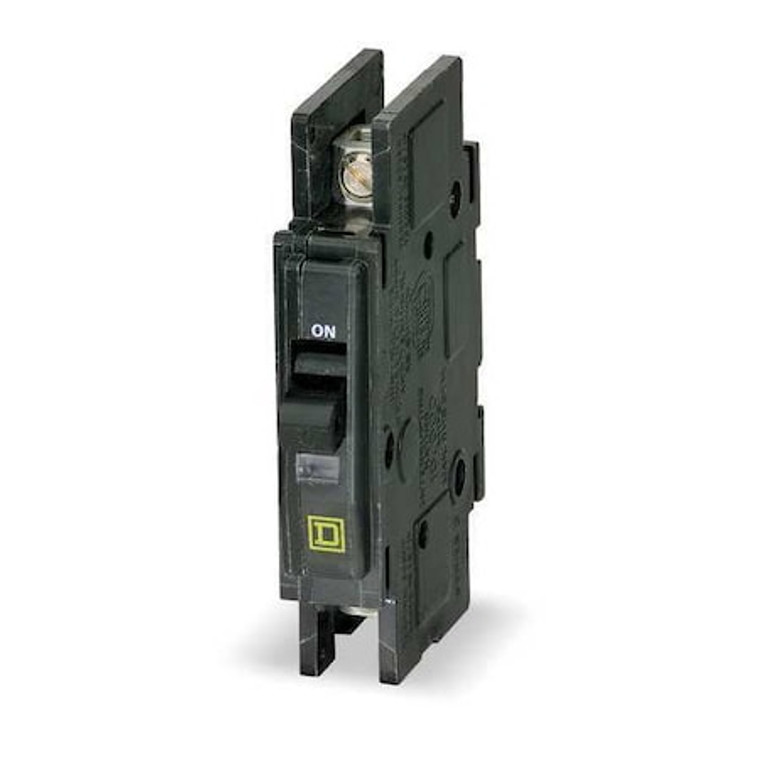

Miniature Circuit Breaker, QOU Series, 100A, 1 Pole, 120/240V AC, 10kA at 120/240V AC - QOU1100

Miniature Circuit Breaker, QOU Series, 100A, 1 Pole, 120/240V AC, 10kA at 120/240V AC - QOU1100

Square D
SKU:
QOU1100
|
UPC:
785901478546
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Miniature Circuit Breaker, Amps 100 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 1, DC Voltage Rating 60V DC, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Surface/DIN Rail, Compatible Panelboard/Load Center Series QO, Phase Single, Series QOU, Max. AIR Rating 10kA at 120/240V AC, For Use With Air Conditioning and Refrigeration Equipment, Heating, Terminal Connection Slotted Box Lug (Non-Reversible Line and Load), Frame Size 100A/QOU
Additional Information
Country of Origin:
Mexico
Item:
Miniature Circuit Breaker
Series:
QOU
Amps:
100A
Number of Poles:
1
AC Voltage Rating:
120/240V AC
Circuit Breaker Type:
Standard
Phase:
1
Circuit Breaker Actuator:
Toggle
Circuit Breaker Mounting Style:
Unit Mount
Max. AIR Rating:
10kA at 120/240V AC
Terminal Connection:
Slotted Box Lug (Line And Load)
Frame Size:
100A/QOU
Width:
0.75 in
Depth:
2.95 in
Height:
4.45 in
DC Voltage Rating:
60V DC
Min. Wire Size:
12 AWG
Max. Wire Size:
2/0 AWG
Standards:
IEC, UL listed
For Use With:
Air Conditioning and Refrigeration Equipment, Heating
Features:
Mercury Free
Application:
HACR rated Applications
Compatible Panelboard/Load Center Series:
QO
Length (Straight Wireway):
4.05 in
Length:
4.05 in
Mounting:
Unit Mount
Voltage:
120/240 VAC
Package Quantity:
1
